一、背景
我们在业务中，有时需要获取数据库中表结构的信息，比如字段的名称、类型、类型长度和说明等信息。在mysql的driver中有现成的方法我们可以调用，但是在使用该方法时遇到了一些问题，这个做一下记录。
- 在业务库中存在很多表，造成很多的字段信息，大概30万左右，这样仅仅select count(*) from INFORMATION_SCHEMA.COLUMNS where TABLE_SCHEMA = 'table_name'就耗费很长时间，大概9s多。
- 但是在使用DatabaseMetaData.getColumns(catalog, schema, tableName, null)查询某个表的字段信息时还是很慢，也差不多9s多。
涉及到的环境：
tidb：v8.5.1
mysql驱动包：8.0.33
二、排查流程
- 查看源码，看看最终执行的sql是什么样的，我们最终发现在com.mysql.cj.jdbc.DatabaseMetaDataUsingInfoSchema#getColumns中定义了相关sql.
- 打断点，看看最终执行的sql是什么样的呢，最终发现执行的sql如下：
SELECT
TABLE_SCHEMA,
NULL,
TABLE_NAME,
COLUMN_NAME,
CASE
WHEN UPPER( DATA_TYPE )= 'DECIMAL' THEN
3
WHEN UPPER( DATA_TYPE )= 'DECIMAL UNSIGNED' THEN
3
WHEN UPPER( DATA_TYPE )= 'TINYINT' THEN
CASE
WHEN LOCATE(
'ZEROFILL',
UPPER( COLUMN_TYPE )) = 0
AND LOCATE(
'UNSIGNED',
UPPER( COLUMN_TYPE )) = 0
AND LOCATE( '(1)', COLUMN_TYPE ) != 0 THEN
- 7 ELSE - 6
END
WHEN UPPER( DATA_TYPE )= 'TINYINT UNSIGNED' THEN
CASE
WHEN LOCATE(
'ZEROFILL',
UPPER( COLUMN_TYPE )) = 0
AND LOCATE(
'UNSIGNED',
UPPER( COLUMN_TYPE )) = 0
AND LOCATE( '(1)', COLUMN_TYPE ) != 0 THEN
- 7 ELSE - 6
END
WHEN UPPER( DATA_TYPE )= 'BOOLEAN' THEN
16
WHEN UPPER( DATA_TYPE )= 'SMALLINT' THEN
5
WHEN UPPER( DATA_TYPE )= 'SMALLINT UNSIGNED' THEN
5
WHEN UPPER( DATA_TYPE )= 'INT' THEN
4
WHEN UPPER( DATA_TYPE )= 'INT UNSIGNED' THEN
4
WHEN UPPER( DATA_TYPE )= 'FLOAT' THEN
7
WHEN UPPER( DATA_TYPE )= 'FLOAT UNSIGNED' THEN
7
WHEN UPPER( DATA_TYPE )= 'DOUBLE' THEN
8
WHEN UPPER( DATA_TYPE )= 'DOUBLE UNSIGNED' THEN
8
WHEN UPPER( DATA_TYPE )= 'NULL' THEN
0
WHEN UPPER( DATA_TYPE )= 'TIMESTAMP' THEN
93
WHEN UPPER( DATA_TYPE )= 'BIGINT' THEN
- 5
WHEN UPPER( DATA_TYPE )= 'BIGINT UNSIGNED' THEN
- 5
WHEN UPPER( DATA_TYPE )= 'MEDIUMINT' THEN
4
WHEN UPPER( DATA_TYPE )= 'MEDIUMINT UNSIGNED' THEN
4
WHEN UPPER( DATA_TYPE )= 'DATE' THEN
91
WHEN UPPER( DATA_TYPE )= 'TIME' THEN
92
WHEN UPPER( DATA_TYPE )= 'DATETIME' THEN
93
WHEN UPPER( DATA_TYPE )= 'YEAR' THEN
91
WHEN UPPER( DATA_TYPE )= 'VARCHAR' THEN
12
WHEN UPPER( DATA_TYPE )= 'VARBINARY' THEN
- 3
WHEN UPPER( DATA_TYPE )= 'BIT' THEN
- 7
WHEN UPPER( DATA_TYPE )= 'JSON' THEN
- 1
WHEN UPPER( DATA_TYPE )= 'ENUM' THEN
1
WHEN UPPER( DATA_TYPE )= 'SET' THEN
1
WHEN UPPER( DATA_TYPE )= 'TINYBLOB' THEN
- 3
WHEN UPPER( DATA_TYPE )= 'TINYTEXT' THEN
12
WHEN UPPER( DATA_TYPE )= 'MEDIUMBLOB' THEN
- 4
WHEN UPPER( DATA_TYPE )= 'MEDIUMTEXT' THEN
- 1
WHEN UPPER( DATA_TYPE )= 'LONGBLOB' THEN
- 4
WHEN UPPER( DATA_TYPE )= 'LONGTEXT' THEN
- 1
WHEN UPPER( DATA_TYPE )= 'BLOB' THEN
- 4
WHEN UPPER( DATA_TYPE )= 'TEXT' THEN
- 1
WHEN UPPER( DATA_TYPE )= 'CHAR' THEN
1
WHEN UPPER( DATA_TYPE )= 'BINARY' THEN
- 2
WHEN UPPER( DATA_TYPE )= 'GEOMETRY' THEN
- 2
WHEN UPPER( DATA_TYPE )= 'UNKNOWN' THEN
1111
WHEN UPPER( DATA_TYPE )= 'POINT' THEN
- 2
WHEN UPPER( DATA_TYPE )= 'LINESTRING' THEN
- 2
WHEN UPPER( DATA_TYPE )= 'POLYGON' THEN
- 2
WHEN UPPER( DATA_TYPE )= 'MULTIPOINT' THEN
- 2
WHEN UPPER( DATA_TYPE )= 'MULTILINESTRING' THEN
- 2
WHEN UPPER( DATA_TYPE )= 'MULTIPOLYGON' THEN
- 2
WHEN UPPER( DATA_TYPE )= 'GEOMETRYCOLLECTION' THEN
- 2
WHEN UPPER( DATA_TYPE )= 'GEOMCOLLECTION' THEN
- 2 ELSE 1111
END AS DATA_TYPE,
UPPER(
CASE
WHEN UPPER( DATA_TYPE )= 'TINYINT' THEN
CASE
WHEN LOCATE(
'ZEROFILL',
UPPER( COLUMN_TYPE )) = 0
AND LOCATE(
'UNSIGNED',
UPPER( COLUMN_TYPE )) = 0
AND LOCATE( '(1)', COLUMN_TYPE ) != 0 THEN
'BIT'
WHEN LOCATE(
'UNSIGNED',
UPPER( COLUMN_TYPE )) != 0
AND LOCATE(
'UNSIGNED',
UPPER( DATA_TYPE )) = 0 THEN
'TINYINT UNSIGNED' ELSE DATA_TYPE
END
WHEN LOCATE(
'UNSIGNED',
UPPER( COLUMN_TYPE )) != 0
AND LOCATE(
'UNSIGNED',
UPPER( DATA_TYPE )) = 0
AND LOCATE(
'SET',
UPPER( DATA_TYPE )) <> 1
AND LOCATE(
'ENUM',
UPPER( DATA_TYPE )) <> 1 THEN
CONCAT( DATA_TYPE, ' UNSIGNED' )
WHEN UPPER( DATA_TYPE )= 'POINT' THEN
'GEOMETRY'
WHEN UPPER( DATA_TYPE )= 'LINESTRING' THEN
'GEOMETRY'
WHEN UPPER( DATA_TYPE )= 'POLYGON' THEN
'GEOMETRY'
WHEN UPPER( DATA_TYPE )= 'MULTIPOINT' THEN
'GEOMETRY'
WHEN UPPER( DATA_TYPE )= 'MULTILINESTRING' THEN
'GEOMETRY'
WHEN UPPER( DATA_TYPE )= 'MULTIPOLYGON' THEN
'GEOMETRY'
WHEN UPPER( DATA_TYPE )= 'GEOMETRYCOLLECTION' THEN
'GEOMETRY'
WHEN UPPER( DATA_TYPE )= 'GEOMCOLLECTION' THEN
'GEOMETRY' ELSE UPPER( DATA_TYPE )
END
) AS TYPE_NAME,
UPPER(
CASE
WHEN UPPER( DATA_TYPE )= 'DATE' THEN
10
WHEN UPPER( DATA_TYPE )= 'TIME' THEN
8+ ( CASE WHEN DATETIME_PRECISION > 0 THEN DATETIME_PRECISION + 1 ELSE DATETIME_PRECISION END )
WHEN UPPER( DATA_TYPE )= 'DATETIME'
OR UPPER( DATA_TYPE )= 'TIMESTAMP' THEN
19+ ( CASE WHEN DATETIME_PRECISION > 0 THEN DATETIME_PRECISION + 1 ELSE DATETIME_PRECISION END )
WHEN UPPER( DATA_TYPE )= 'YEAR' THEN
4
WHEN UPPER( DATA_TYPE )= 'TINYINT'
AND LOCATE(
'ZEROFILL',
UPPER( COLUMN_TYPE )) = 0
AND LOCATE(
'UNSIGNED',
UPPER( COLUMN_TYPE )) = 0
AND LOCATE( '(1)', COLUMN_TYPE ) != 0 THEN
1
WHEN UPPER( DATA_TYPE )= 'MEDIUMINT'
AND LOCATE(
'UNSIGNED',
UPPER( COLUMN_TYPE )) != 0 THEN
8
WHEN UPPER( DATA_TYPE )= 'JSON' THEN
1073741824
WHEN UPPER( DATA_TYPE )= 'GEOMETRY' THEN
65535
WHEN UPPER( DATA_TYPE )= 'POINT' THEN
65535
WHEN UPPER( DATA_TYPE )= 'LINESTRING' THEN
65535
WHEN UPPER( DATA_TYPE )= 'POLYGON' THEN
65535
WHEN UPPER( DATA_TYPE )= 'MULTIPOINT' THEN
65535
WHEN UPPER( DATA_TYPE )= 'MULTILINESTRING' THEN
65535
WHEN UPPER( DATA_TYPE )= 'MULTIPOLYGON' THEN
65535
WHEN UPPER( DATA_TYPE )= 'GEOMETRYCOLLECTION' THEN
65535
WHEN UPPER( DATA_TYPE )= 'GEOMCOLLECTION' THEN
65535
WHEN CHARACTER_MAXIMUM_LENGTH IS NULL THEN
NUMERIC_PRECISION
WHEN CHARACTER_MAXIMUM_LENGTH > 2147483647 THEN
2147483647 ELSE CHARACTER_MAXIMUM_LENGTH
END
) AS COLUMN_SIZE,
65535 AS BUFFER_LENGTH,
UPPER(
CASE
WHEN UPPER( DATA_TYPE )= 'DECIMAL' THEN
NUMERIC_SCALE
WHEN UPPER( DATA_TYPE )= 'FLOAT'
OR UPPER( DATA_TYPE )= 'DOUBLE' THEN
CASE
WHEN NUMERIC_SCALE IS NULL THEN
0 ELSE NUMERIC_SCALE
END ELSE NULL
END
) AS DECIMAL_DIGITS,
10 AS NUM_PREC_RADIX,
CASE
WHEN IS_NULLABLE = 'NO' THEN
0 ELSE
CASE
WHEN IS_NULLABLE = 'YES' THEN
1 ELSE 2
END
END AS NULLABLE,
COLUMN_COMMENT AS REMARKS,
COLUMN_DEFAULT AS COLUMN_DEF,
0 AS SQL_DATA_TYPE,
0 AS SQL_DATETIME_SUB,
CASE
WHEN CHARACTER_OCTET_LENGTH > 2147483647 THEN
2147483647 ELSE CHARACTER_OCTET_LENGTH
END AS CHAR_OCTET_LENGTH,
ORDINAL_POSITION,
IS_NULLABLE,
NULL AS SCOPE_CATALOG,
NULL AS SCOPE_SCHEMA,
NULL AS SCOPE_TABLE,
NULL AS SOURCE_DATA_TYPE,
IF
( EXTRA LIKE '%auto_increment%', 'YES', 'NO' ) AS IS_AUTOINCREMENT,
IF
( EXTRA LIKE '%GENERATED%', 'YES', 'NO' ) AS IS_GENERATEDCOLUMN
FROM
INFORMATION_SCHEMA.COLUMNS
WHERE
TABLE_SCHEMA = ?
AND TABLE_NAME LIKE ?
ORDER BY
TABLE_SCHEMA,
TABLE_NAME,
ORDINAL_POSITION
- 分析上面的语句，尽管查询sql很长，但是他只查询了INFORMATION_SCHEMA.COLUMNS 表，那为什么仅查询一个表的字段还那么慢？
- 我们把上述语句中的”AND TABLE_NAME LIKE ?“ 改为”AND TABLE_NAME = ?“放在tidb中执行发现仅0.2秒。
- 那么为什么tidb对like的执行那么慢，而且该表没有索引什么的？为什么查询单表时mysql驱动生成的语句是like而不是等于？
三、原因分析
为什么tidb对INFORMATION_SCHEMA.COLUMNS中的TABLE_NAME执行like查询那么慢？
首先确认该表是系统表，也不存在索引，但是我为啥出现那么大的差距呢？

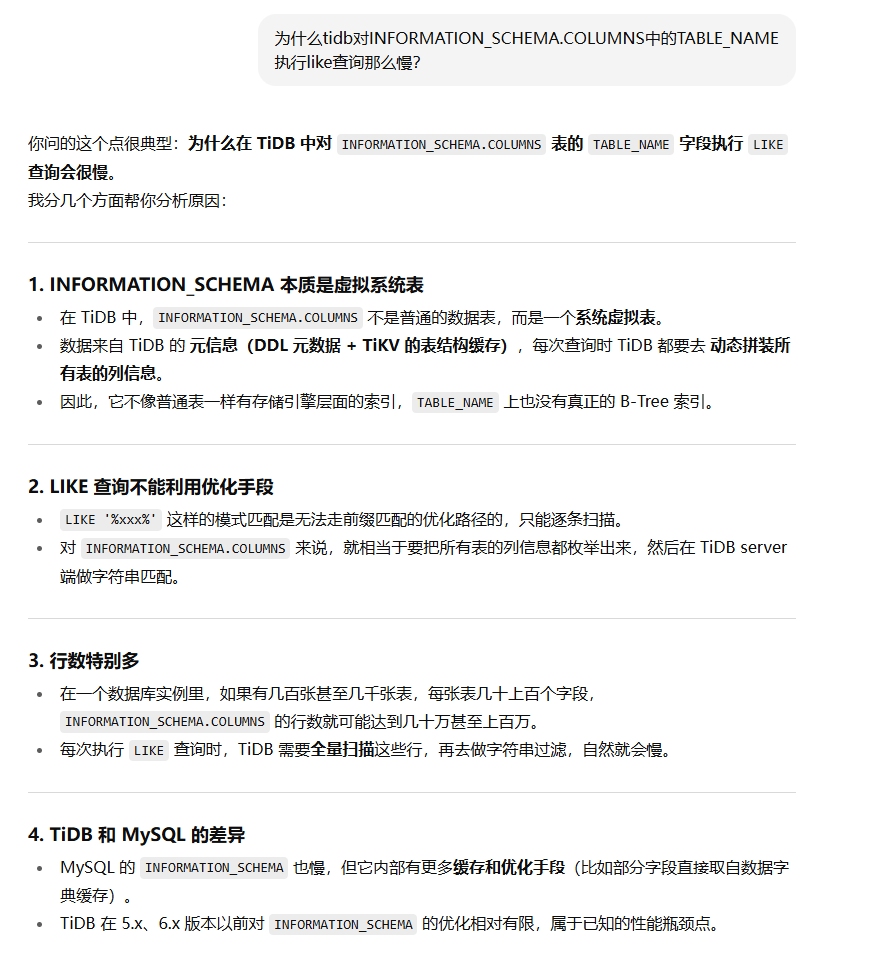

chatgpt给出的解释如下：
嗯，说的有道理，但是没找到官方说明（这个得吐槽一下），就把他当原因吧。
上社区看下吧，看到好多陷入到该坑的：
https://asktug.com/t/topic/1028335
https://asktug.com/t/topic/1027258
为什么查询单表时mysql驱动生成的语句是like而不是等于

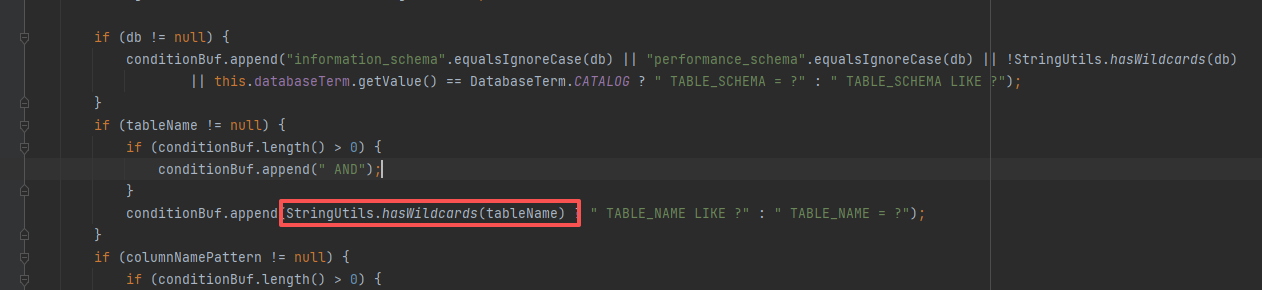

我在执行DatabaseMetaData.getColumns(catalog, schema, tableName, null)；方法时指定的tableName是一个具体的表名，但是带了下划线。即table_name这种，那只能看看代码，发现代码处理如下：

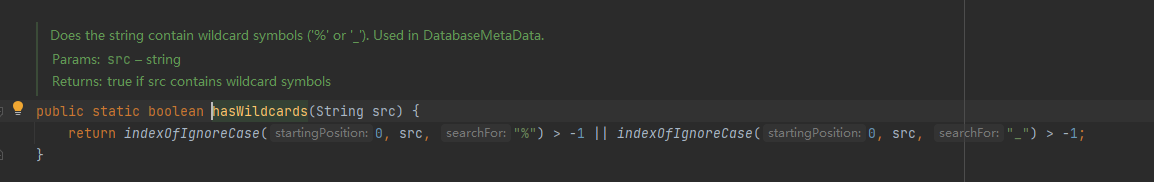

发现这里对表名做了一下判断，如果表名中包含%或者_时就会使用like的查询模式。
嗯 .....
这算不算是个bug？如果我在库中同时存在table_name和tableaname，那么我指定查询table_name表字段时，会不会把这两个表的字段都查询出来呢？
四、解决方法
数据库的问题解决不了，那咱们就只能从应用端入手了。修改jdbc的源码解决”bug“,这个可以解决，但是还得对源码打包再依赖，比较复杂。那么咱们可以写个子类重写上面的方法，嗯这个不错，开始干：
定义一个MyDatabaseMetaData类，来继承DatabaseMetaDataUsingInfoSchema，主要是修改内容为：当表名包含下划线时使用等于查询。
具体如下：
package com.df.test.config;
import com.mysql.cj.MysqlType;
import com.mysql.cj.ServerVersion;
import com.mysql.cj.conf.PropertyDefinitions;
import com.mysql.cj.jdbc.DatabaseMetaDataUsingInfoSchema;
import com.mysql.cj.jdbc.JdbcConnection;
import com.mysql.cj.jdbc.result.ResultSetFactory;
import com.mysql.cj.util.StringUtils;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Types;
/**
* @Author: lichong
* @Description:
* @Date: 2025/9/16 10:44
* @Version: 1.0
*/
public class MyDatabaseMetaData extends DatabaseMetaDataUsingInfoSchema {
protected MyDatabaseMetaData(JdbcConnection connToSet, String databaseToSet, ResultSetFactory resultSetFactory) throws SQLException {
super(connToSet, databaseToSet, resultSetFactory);
}
public ResultSet getColumns(String catalog, String schemaPattern, String tableName, String columnNamePattern) throws SQLException {
String db = getDatabase(catalog, schemaPattern);
db = this.pedantic ? db : StringUtils.unQuoteIdentifier(db, this.quotedId);
StringBuilder sqlBuf = new StringBuilder(
this.databaseTerm.getValue() == PropertyDefinitions.DatabaseTerm.SCHEMA ? "SELECT TABLE_CATALOG, TABLE_SCHEMA," : "SELECT TABLE_SCHEMA, NULL,");
sqlBuf.append(" TABLE_NAME, COLUMN_NAME,");
appendJdbcTypeMappingQuery(sqlBuf, "DATA_TYPE", "COLUMN_TYPE");
sqlBuf.append(" AS DATA_TYPE, ");
sqlBuf.append("UPPER(CASE");
if (this.tinyInt1isBit) {
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='TINYINT' THEN CASE");
sqlBuf.append(
" WHEN LOCATE('ZEROFILL', UPPER(COLUMN_TYPE)) = 0 AND LOCATE('UNSIGNED', UPPER(COLUMN_TYPE)) = 0 AND LOCATE('(1)', COLUMN_TYPE) != 0 THEN ");
sqlBuf.append(this.transformedBitIsBoolean ? "'BOOLEAN'" : "'BIT'");
sqlBuf.append(" WHEN LOCATE('UNSIGNED', UPPER(COLUMN_TYPE)) != 0 AND LOCATE('UNSIGNED', UPPER(DATA_TYPE)) = 0 THEN 'TINYINT UNSIGNED'");
sqlBuf.append(" ELSE DATA_TYPE END ");
}
sqlBuf.append(
" WHEN LOCATE('UNSIGNED', UPPER(COLUMN_TYPE)) != 0 AND LOCATE('UNSIGNED', UPPER(DATA_TYPE)) = 0 AND LOCATE('SET', UPPER(DATA_TYPE)) <> 1 AND LOCATE('ENUM', UPPER(DATA_TYPE)) <> 1 THEN CONCAT(DATA_TYPE, ' UNSIGNED')");
// spatial data types
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='POINT' THEN 'GEOMETRY'");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='LINESTRING' THEN 'GEOMETRY'");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='POLYGON' THEN 'GEOMETRY'");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='MULTIPOINT' THEN 'GEOMETRY'");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='MULTILINESTRING' THEN 'GEOMETRY'");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='MULTIPOLYGON' THEN 'GEOMETRY'");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='GEOMETRYCOLLECTION' THEN 'GEOMETRY'");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='GEOMCOLLECTION' THEN 'GEOMETRY'");
sqlBuf.append(" ELSE UPPER(DATA_TYPE) END) AS TYPE_NAME,");
sqlBuf.append("UPPER(CASE");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='DATE' THEN 10"); // supported range is '1000-01-01' to '9999-12-31'
if (this.conn.getServerVersion().meetsMinimum(ServerVersion.parseVersion("5.6.4"))) {
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='TIME'"); // supported range is '-838:59:59.000000' to '838:59:59.000000'
sqlBuf.append(" THEN 8+(CASE WHEN DATETIME_PRECISION>0 THEN DATETIME_PRECISION+1 ELSE DATETIME_PRECISION END)");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='DATETIME' OR"); // supported range is '1000-01-01 00:00:00.000000' to '9999-12-31 23:59:59.999999'
sqlBuf.append(" UPPER(DATA_TYPE)='TIMESTAMP'"); // supported range is '1970-01-01 00:00:01.000000' UTC to '2038-01-19 03:14:07.999999' UTC
sqlBuf.append(" THEN 19+(CASE WHEN DATETIME_PRECISION>0 THEN DATETIME_PRECISION+1 ELSE DATETIME_PRECISION END)");
} else {
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='TIME' THEN 8"); // supported range is '-838:59:59.000000' to '838:59:59.000000'
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='DATETIME' OR"); // supported range is '1000-01-01 00:00:00.000000' to '9999-12-31 23:59:59.999999'
sqlBuf.append(" UPPER(DATA_TYPE)='TIMESTAMP'"); // supported range is '1970-01-01 00:00:01.000000' UTC to '2038-01-19 03:14:07.999999' UTC
sqlBuf.append(" THEN 19");
}
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='YEAR' THEN 4");
if (this.tinyInt1isBit && !this.transformedBitIsBoolean) {
sqlBuf.append(
" WHEN UPPER(DATA_TYPE)='TINYINT' AND LOCATE('ZEROFILL', UPPER(COLUMN_TYPE)) = 0 AND LOCATE('UNSIGNED', UPPER(COLUMN_TYPE)) = 0 AND LOCATE('(1)', COLUMN_TYPE) != 0 THEN 1");
}
// workaround for Bug#69042 (16712664), "MEDIUMINT PRECISION/TYPE INCORRECT IN INFORMATION_SCHEMA.COLUMNS", I_S bug returns NUMERIC_PRECISION=7 for MEDIUMINT UNSIGNED when it must be 8.
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='MEDIUMINT' AND LOCATE('UNSIGNED', UPPER(COLUMN_TYPE)) != 0 THEN 8");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='JSON' THEN 1073741824"); // JSON columns is limited to the value of the max_allowed_packet system variable (max value 1073741824)
// spatial data types
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='GEOMETRY' THEN 65535");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='POINT' THEN 65535");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='LINESTRING' THEN 65535");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='POLYGON' THEN 65535");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='MULTIPOINT' THEN 65535");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='MULTILINESTRING' THEN 65535");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='MULTIPOLYGON' THEN 65535");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='GEOMETRYCOLLECTION' THEN 65535");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='GEOMCOLLECTION' THEN 65535");
sqlBuf.append(" WHEN CHARACTER_MAXIMUM_LENGTH IS NULL THEN NUMERIC_PRECISION");
sqlBuf.append(" WHEN CHARACTER_MAXIMUM_LENGTH > ");
sqlBuf.append(Integer.MAX_VALUE);
sqlBuf.append(" THEN ");
sqlBuf.append(Integer.MAX_VALUE);
sqlBuf.append(" ELSE CHARACTER_MAXIMUM_LENGTH");
sqlBuf.append(" END) AS COLUMN_SIZE,");
sqlBuf.append(maxBufferSize);
sqlBuf.append(" AS BUFFER_LENGTH,");
sqlBuf.append("UPPER(CASE");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='DECIMAL' THEN NUMERIC_SCALE");
sqlBuf.append(" WHEN UPPER(DATA_TYPE)='FLOAT' OR UPPER(DATA_TYPE)='DOUBLE' THEN");
sqlBuf.append(" CASE WHEN NUMERIC_SCALE IS NULL THEN 0");
sqlBuf.append(" ELSE NUMERIC_SCALE END");
sqlBuf.append(" ELSE NULL END) AS DECIMAL_DIGITS,");
sqlBuf.append("10 AS NUM_PREC_RADIX,");
sqlBuf.append("CASE");
sqlBuf.append(" WHEN IS_NULLABLE='NO' THEN ");
sqlBuf.append(columnNoNulls);
sqlBuf.append(" ELSE CASE WHEN IS_NULLABLE='YES' THEN ");
sqlBuf.append(columnNullable);
sqlBuf.append(" ELSE ");
sqlBuf.append(columnNullableUnknown);
sqlBuf.append(" END END AS NULLABLE,");
sqlBuf.append("COLUMN_COMMENT AS REMARKS,");
sqlBuf.append("COLUMN_DEFAULT AS COLUMN_DEF,");
sqlBuf.append("0 AS SQL_DATA_TYPE,");
sqlBuf.append("0 AS SQL_DATETIME_SUB,");
sqlBuf.append("CASE WHEN CHARACTER_OCTET_LENGTH > ");
sqlBuf.append(Integer.MAX_VALUE);
sqlBuf.append(" THEN ");
sqlBuf.append(Integer.MAX_VALUE);
sqlBuf.append(" ELSE CHARACTER_OCTET_LENGTH END AS CHAR_OCTET_LENGTH,");
sqlBuf.append("ORDINAL_POSITION, IS_NULLABLE, NULL AS SCOPE_CATALOG, NULL AS SCOPE_SCHEMA, NULL AS SCOPE_TABLE, NULL AS SOURCE_DATA_TYPE,");
sqlBuf.append("IF (EXTRA LIKE '%auto_increment%','YES','NO') AS IS_AUTOINCREMENT, ");
sqlBuf.append("IF (EXTRA LIKE '%GENERATED%','YES','NO') AS IS_GENERATEDCOLUMN ");
sqlBuf.append("FROM INFORMATION_SCHEMA.COLUMNS");
StringBuilder conditionBuf = new StringBuilder();
if (db != null) {
conditionBuf.append("information_schema".equalsIgnoreCase(db) || "performance_schema".equalsIgnoreCase(db) || !hasLike(db)
|| this.databaseTerm.getValue() == PropertyDefinitions.DatabaseTerm.CATALOG ? " TABLE_SCHEMA = ?" : " TABLE_SCHEMA LIKE ?");
}
if (tableName != null) {
if (conditionBuf.length() > 0) {
conditionBuf.append(" AND");
}
conditionBuf.append(hasLike(tableName) ? " TABLE_NAME LIKE ?" : " TABLE_NAME = ?");
}
if (columnNamePattern != null) {
if (conditionBuf.length() > 0) {
conditionBuf.append(" AND");
}
conditionBuf.append(hasLike(columnNamePattern) ? " COLUMN_NAME LIKE ?" : " COLUMN_NAME = ?");
}
if (conditionBuf.length() > 0) {
sqlBuf.append(" WHERE");
}
sqlBuf.append(conditionBuf);
sqlBuf.append(" ORDER BY TABLE_SCHEMA, TABLE_NAME, ORDINAL_POSITION");
java.sql.PreparedStatement pStmt = null;
try {
pStmt = prepareMetaDataSafeStatement(sqlBuf.toString());
int nextId = 1;
if (db != null) {
pStmt.setString(nextId++, db);
}
if (tableName != null) {
pStmt.setString(nextId++, tableName);
}
if (columnNamePattern != null) {
pStmt.setString(nextId, columnNamePattern);
}
ResultSet rs = executeMetadataQuery(pStmt);
((com.mysql.cj.jdbc.result.ResultSetInternalMethods) rs).getColumnDefinition().setFields(createColumnsFields());
return rs;
} finally {
if (pStmt != null) {
pStmt.close();
}
}
}
private boolean hasLike(String name) {
return StringUtils.indexOfIgnoreCase(0, name, "%") > -1;
}
private final void appendJdbcTypeMappingQuery(StringBuilder buf, String mysqlTypeColumnName, String fullMysqlTypeColumnName) {
buf.append("CASE ");
for (MysqlType mysqlType : MysqlType.values()) {
buf.append(" WHEN UPPER(");
buf.append(mysqlTypeColumnName);
buf.append(")='");
buf.append(mysqlType.getName());
buf.append("' THEN ");
switch (mysqlType) {
case TINYINT:
case TINYINT_UNSIGNED:
if (this.tinyInt1isBit) {
buf.append("CASE");
buf.append(" WHEN LOCATE('ZEROFILL', UPPER(");
buf.append(fullMysqlTypeColumnName);
buf.append(")) = 0 AND LOCATE('UNSIGNED', UPPER(");
buf.append(fullMysqlTypeColumnName);
buf.append(")) = 0 AND LOCATE('(1)', ");
buf.append(fullMysqlTypeColumnName);
buf.append(") != 0 THEN ");
buf.append(this.transformedBitIsBoolean ? "16" : "-7");
buf.append(" ELSE -6 END ");
} else {
buf.append(mysqlType.getJdbcType());
}
break;
case YEAR:
buf.append(this.yearIsDateType ? mysqlType.getJdbcType() : Types.SMALLINT);
break;
default:
buf.append(mysqlType.getJdbcType());
}
}
buf.append(" WHEN UPPER(DATA_TYPE)='POINT' THEN -2");
buf.append(" WHEN UPPER(DATA_TYPE)='LINESTRING' THEN -2");
buf.append(" WHEN UPPER(DATA_TYPE)='POLYGON' THEN -2");
buf.append(" WHEN UPPER(DATA_TYPE)='MULTIPOINT' THEN -2");
buf.append(" WHEN UPPER(DATA_TYPE)='MULTILINESTRING' THEN -2");
buf.append(" WHEN UPPER(DATA_TYPE)='MULTIPOLYGON' THEN -2");
buf.append(" WHEN UPPER(DATA_TYPE)='GEOMETRYCOLLECTION' THEN -2");
buf.append(" WHEN UPPER(DATA_TYPE)='GEOMCOLLECTION' THEN -2");
buf.append(" ELSE 1111");
buf.append(" END ");
}
}
然后再搞下调用该类的逻辑，定义一个MyMetaUtil：
package com.df.test.config;
import cn.hutool.core.collection.ListUtil;
import cn.hutool.core.util.StrUtil;
import cn.hutool.db.DbRuntimeException;
import cn.hutool.db.DbUtil;
import cn.hutool.db.meta.*;
import com.mysql.cj.jdbc.ConnectionImpl;
import com.mysql.cj.jdbc.result.ResultSetFactory;
import javax.sql.DataSource;
import java.sql.Connection;
import java.sql.DatabaseMetaData;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.LinkedHashMap;
import java.util.Map;
/**
* @Author: lichong
* @Description:
* @Date: 2025/9/16 11:06
* @Version: 1.0
*/
public class MyMetaUtil {
public static String getCatalog(Connection conn) {
if (null == conn) {
return null;
}
try {
return conn.getCatalog();
} catch (SQLException e) {
// ignore
}
return null;
}
/**
* 获取schema，获取失败返回{@code null}
*
* @param conn {@link Connection} 数据库连接，{@code null}时返回null
* @return schema，获取失败返回{@code null}
* @since 4.6.0
*/
public static String getSchema(Connection conn) {
if (null == conn) {
return null;
}
try {
return conn.getSchema();
} catch (SQLException e) {
// ignore
}
return null;
}
public static Table getTableMeta(DataSource ds, String tableName) {
final Table table = Table.create(tableName);
Connection conn = null;
try {
conn = ds.getConnection();
// catalog和schema获取失败默认使用null代替
String catalog = getCatalog(conn);
table.setCatalog(catalog);
String schema = getSchema(conn);
table.setSchema(schema);
ConnectionImpl connImpl = conn.unwrap(ConnectionImpl.class);
ResultSetFactory unwrap = new ResultSetFactory(connImpl, null);
MyDatabaseMetaData metaData = new MyDatabaseMetaData(connImpl.getMultiHostSafeProxy(), connImpl.getDatabase(),unwrap);
// 获得表元数据（表注释）
/*try (final ResultSet rs = metaData.getTables(catalog, schema, tableName, new String[]{TableType.TABLE.value()})) {
if (null != rs) {
if (rs.next()) {
table.setComment(rs.getString("REMARKS"));
}
}
}
// 获得主键
try (final ResultSet rs = metaData.getPrimaryKeys(catalog, schema, tableName)) {
if (null != rs) {
while (rs.next()) {
table.addPk(rs.getString("COLUMN_NAME"));
}
}
}*/
// 获得列
try (final ResultSet rs = metaData.getColumns(catalog, schema, tableName, null)) {
if (null != rs) {
while (rs.next()) {
table.setColumn(Column.create(table, rs));
}
}
}
// 获得索引信息(since 5.7.23)
try (final ResultSet rs = metaData.getIndexInfo(catalog, schema, tableName, false, false)) {
final Map<String, IndexInfo> indexInfoMap = new LinkedHashMap<>();
if (null != rs) {
while (rs.next()) {
//排除tableIndexStatistic类型索引
if (0 == rs.getShort("TYPE")) {
continue;
}
final String indexName = rs.getString("INDEX_NAME");
final String key = StrUtil.join("&", tableName, indexName);
// 联合索引情况下一个索引会有多个列，此处须组合索引列到一个索引信息对象下
IndexInfo indexInfo = indexInfoMap.get(key);
if (null == indexInfo) {
indexInfo = new IndexInfo(rs.getBoolean("NON_UNIQUE"), indexName, tableName, schema, catalog);
indexInfoMap.put(key, indexInfo);
}
indexInfo.getColumnIndexInfoList().add(ColumnIndexInfo.create(rs));
}
}
table.setIndexInfoList(ListUtil.toList(indexInfoMap.values()));
}
} catch (SQLException e) {
throw new DbRuntimeException("Get columns error!", e);
} finally {
DbUtil.close(conn);
}
return table;
}
}
嗯嗯，搞定，测试。速度上来了。
五、总结
tidb对该表查询慢是毋庸置疑的，可能是整体机制上限制的问题，查看之前的版本升级中也优化过该表的查询，但是数据量大了的确会造成该影响。希望后续官方能给出一个好的解决方案。
第二，这个mysql驱动包处理下划线表名为like自己感觉也是有问题的，因为业务中很多都是以下划线命名表名和库名，这种处理逻辑的确是个bug，上述的总结可以提高单表的查询速度，如果进行多表扫描，和查询整个库的字段信息，还是不会提高的。
