测试 TiDB 在敏捷模式下的容灾方案

 lmdb  发表于  2025-09-30

平凯数据库Tidb敏捷模式下初探

1.测试目的

通过Ticdc测试Tidb在标准模式和敏捷模式下数据同步情况,重点测试Tidb在敏捷模式的可行性等情况以及Tem对敏捷模式下Tidb的管理和负载情况。

Tidb的标准模式为Ticdc上游,Tem中部署的敏捷模式为Ticdc的下游。

通过tiup bench tpcc 对数据库进行压测,测试Ticdc上下游数据库同步情况。

注:”以下测试环境均在虚拟机中完成“

2.测试环境

2.1 Tidb集群模式

硬件环境, 3台 2CPU+4G 的虚拟机

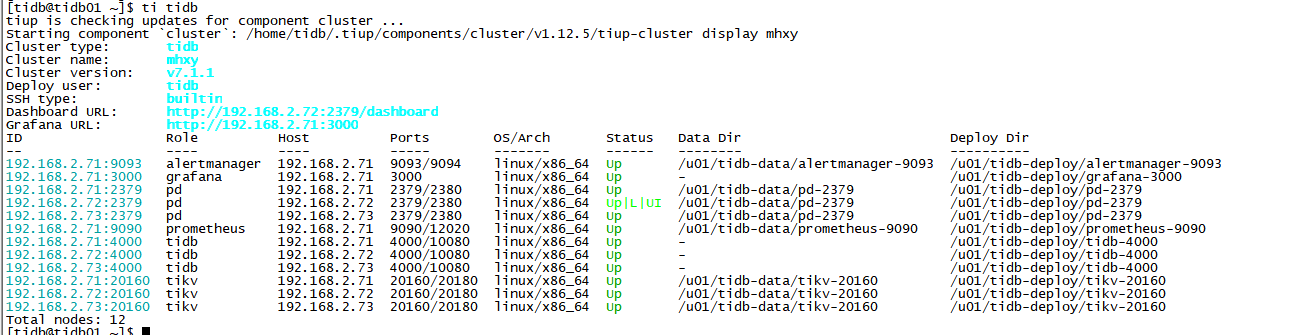

软件环境,采用 v7.1.1版本 , 部署3pd + 3 tidb +3 tikv 节点


2.2 Tidb敏捷模式

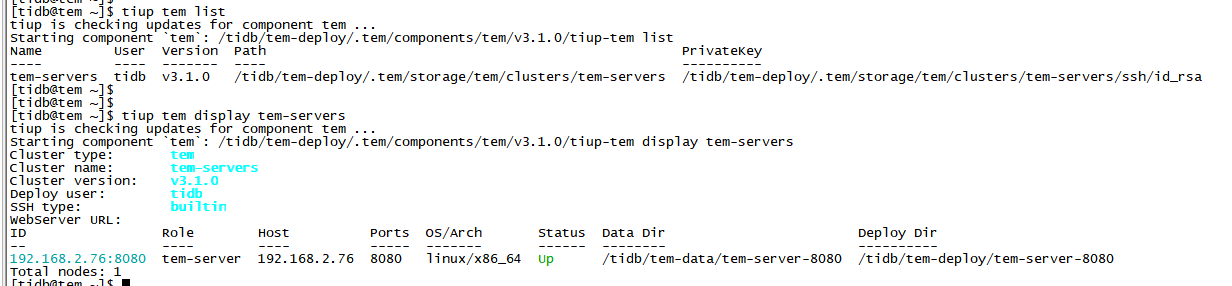

硬件环境,TEM主机为2CPU+2G的虚拟机 ,集群管理中控机与集群主机部署在同一虚机下,配置8CPU+8G内存的虚拟机

软件环境,使用TEM 部署敏捷模式下的Tidb ,v7.1.8-5.2-20250630 版本,采用敏捷模式部署1PD+1Tidb+1Tikv节点




3. 配置Haprorxy

3.1 使用yum安装haproxy

yum install haproxy.x86_64

3.2 配置haproxy.cfg文件

global                                     # 全局配置。
   log         127.0.0.1 local2            # 定义全局的 syslog 服务器,最多可以定义两个。
   chroot      /var/lib/haproxy            # 更改当前目录并为启动进程设置超级用户权限,从而提高安全性。
   pidfile     /var/run/haproxy.pid        # 将 HAProxy 进程的 PID 写入 pidfile。
   maxconn     4000                        # 每个 HAProxy 进程所接受的最大并发连接数。
   user        haproxy                     # 同 UID 参数。
   group       haproxy                     # 同 GID 参数,建议使用专用用户组。
   nbproc      1                           # 在后台运行时创建的进程数。在启动多个进程转发请求时,确保该值足够大,保证 HAProxy 不会成为瓶颈。
   daemon                                  # 让 HAProxy 以守护进程的方式工作于后台,等同于命令行参数“-D”的功能。当然,也可以在命令行中用“-db”参数将其禁用。
   stats socket /var/lib/haproxy/stats     # 统计信息保存位置。

defaults                                   # 默认配置。
   log global                              # 日志继承全局配置段的设置。
   retries 2                               # 向上游服务器尝试连接的最大次数,超过此值便认为后端服务器不可用。
   timeout connect  2s                     # HAProxy 与后端服务器连接超时时间。如果在同一个局域网内,可设置成较短的时间。
   timeout client 30000s                   # 客户端与 HAProxy 连接后,数据传输完毕,即非活动连接的超时时间。
   timeout server 30000s                   # 服务器端非活动连接的超时时间。

listen admin_stats                         # frontend 和 backend 的组合体,此监控组的名称可按需进行自定义。
   bind 0.0.0.0:8080                       # 监听端口。
   mode http                               # 监控运行的模式,此处为 `http` 模式。
   option httplog                          # 开始启用记录 HTTP 请求的日志功能。
   maxconn 10                              # 最大并发连接数。
   stats refresh 30s                       # 每隔 30 秒自动刷新监控页面。
   stats uri /haproxy                      # 监控页面的 URL。
   stats realm HAProxy                     # 监控页面的提示信息。
   stats auth admin:pingcap123             # 监控页面的用户和密码,可设置多个用户名。
   stats hide-version                      # 隐藏监控页面上的 HAProxy 版本信息。
   stats  admin if TRUE                    # 手工启用或禁用后端服务器(HAProxy 1.4.9 及之后版本开始支持)。

listen tidb-cluster                        # 配置 database 负载均衡。
   bind 0.0.0.0:8000                       # 浮动 IP 和 监听端口。
   mode tcp                                # HAProxy 要使用第 4 层的传输层。
   balance leastconn                       # 连接数最少的服务器优先接收连接。`leastconn` 建议用于长会话服务,例如 LDAP、SQL、TSE 等,而不是短会话协议,如 HTTP。该算法是动态的,对于启动慢的服务器,服务器权重会在运行中作调整。

  # 检测 4000 端口,检测频率为每 2000 毫秒一次。如果 2 次检测为成功,则认为服务器可用;如果 3 次检测为失败,则认为服务器不可用。
   server tidb-1 192.168.2.71:4000 check inter 2000 rise 2 fall 3
   server tidb-3 192.168.2.73:4000 check inter 2000 rise 2 fall 3

3.3 配置proxy-protocol

在tidb server中配置代理config 参数, reload 生效

    proxy-protocol.networks: 192.168.2.71,192.168.2.73

3.4 重启Haproxy服务

[tidb@tidb01 ~]$ systemctl restart haproxy
[tidb@tidb01 ~]$ systemctl status haproxy
● haproxy.service - HAProxy Load Balancer
   Loaded: loaded (/usr/lib/systemd/system/haproxy.service; enabled; vendor preset: disabled)
   Active: active (running) since Mon 2025-09-22 20:56:51 CST; 2h 3min ago
 Main PID: 1062 (haproxy-systemd)
    Tasks: 3
   CGroup: /system.slice/haproxy.service
           ├─1062 /usr/sbin/haproxy-systemd-wrapper -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid
           ├─1077 /usr/sbin/haproxy -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -Ds
           └─1085 /usr/sbin/haproxy -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -Ds
[tidb@tidb01 ~]$

3.5 测试Haproxy 连通性

[tidb@tidb01 ~]$ mysql -uroot -p -P8000 -h192.168.2.71 -A
Enter password:
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MySQL connection id is 413
Server version: 5.7.25-TiDB-v7.1.1 TiDB Server (Apache License 2.0) Enterprise Edition, MySQL 5.7 compatible

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MySQL [(none)]> show databases;
+--------------------+
| Database           |
+--------------------+
| INFORMATION_SCHEMA |
| METRICS_SCHEMA     |
| PERFORMANCE_SCHEMA |
| employees          |
| mysql              |
| test               |
+--------------------+
6 rows in set (0.01 sec)

MySQL [(none)]> \q
Bye
[tidb@tidb01 ~]$

4. 创建CDC同步服务

4.1 上游Tidb集群创建Ticdc组件

Ticdc组件的配置文件 cdc_scale_out.yaml,规划每个服务器均创建一个cdc组件

cdc_servers:
- host: 192.168.2.71
  ssh_port: 22
  port: 8300
  gc-ttl: 86400
  data_dir: "/u01/tidb-deploy/cdc-data"
- host: 192.168.2.72
  ssh_port: 22
  port: 8300
  gc-ttl: 86400
  data_dir: "/u01/tidb-deploy/cdc-data"
- host: 192.168.2.73
  ssh_port: 22
  port: 8300
  gc-ttl: 86400
  data_dir: "/u01/tidb-deploy/cdc-data"

使用tiup在集群上扩容Ticdc组件

[tidb@tidb01 ~]$
[tidb@tidb01 ~]$ tiup cluster scale-out mhxy cdc_scale_out.yaml

Ticdc组件扩容完成,查看集群服务,cdc服务正常。

[tidb@tidb01 ~]$ ti tidb
tiup is checking updates for component cluster ...
Starting component `cluster`: /home/tidb/.tiup/components/cluster/v1.12.5/tiup-cluster display mhxy
Cluster type:       tidb
Cluster name:       mhxy
Cluster version:    v7.1.1
Deploy user:        tidb
SSH type:           builtin
Dashboard URL:      http://192.168.2.72:2379/dashboard
Grafana URL:        http://192.168.2.71:3000
ID                  Role          Host          Ports        OS/Arch       Status   Data Dir                          Deploy Dir
--                  ----          ----          -----        -------       ------   --------                          ----------
192.168.2.71:9093   alertmanager  192.168.2.71  9093/9094    linux/x86_64  Up       /u01/tidb-data/alertmanager-9093  /u01/tidb-deploy/alertmanager-9093
192.168.2.71:8300   cdc           192.168.2.71  8300         linux/x86_64  Up       /u01/tidb-deploy/cdc-data         /u01/tidb-deploy/cdc-8300
192.168.2.72:8300   cdc           192.168.2.72  8300         linux/x86_64  Up       /u01/tidb-deploy/cdc-data         /u01/tidb-deploy/cdc-8300
192.168.2.73:8300   cdc           192.168.2.73  8300         linux/x86_64  Up       /u01/tidb-deploy/cdc-data         /u01/tidb-deploy/cdc-8300
192.168.2.71:3000   grafana       192.168.2.71  3000         linux/x86_64  Up       -                                 /u01/tidb-deploy/grafana-3000
192.168.2.71:2379   pd            192.168.2.71  2379/2380    linux/x86_64  Up       /u01/tidb-data/pd-2379            /u01/tidb-deploy/pd-2379
192.168.2.72:2379   pd            192.168.2.72  2379/2380    linux/x86_64  Up|L|UI  /u01/tidb-data/pd-2379            /u01/tidb-deploy/pd-2379
192.168.2.73:2379   pd            192.168.2.73  2379/2380    linux/x86_64  Up       /u01/tidb-data/pd-2379            /u01/tidb-deploy/pd-2379
192.168.2.71:9090   prometheus    192.168.2.71  9090/12020   linux/x86_64  Up       /u01/tidb-data/prometheus-9090    /u01/tidb-deploy/prometheus-9090
192.168.2.71:4000   tidb          192.168.2.71  4000/10080   linux/x86_64  Up       -                                 /u01/tidb-deploy/tidb-4000
192.168.2.72:4000   tidb          192.168.2.72  4000/10080   linux/x86_64  Up       -                                 /u01/tidb-deploy/tidb-4000
192.168.2.73:4000   tidb          192.168.2.73  4000/10080   linux/x86_64  Up       -                                 /u01/tidb-deploy/tidb-4000
192.168.2.71:20160  tikv          192.168.2.71  20160/20180  linux/x86_64  Up       /u01/tidb-data/tikv-20160         /u01/tidb-deploy/tikv-20160
192.168.2.72:20160  tikv          192.168.2.72  20160/20180  linux/x86_64  Up       /u01/tidb-data/tikv-20160         /u01/tidb-deploy/tikv-20160
192.168.2.73:20160  tikv          192.168.2.73  20160/20180  linux/x86_64  Up       /u01/tidb-data/tikv-20160         /u01/tidb-deploy/tikv-20160
Total nodes: 15

4.2创建同步用户

在CDC同步任务的上下游数据库分别创建同步用户 ticdc;

MySQL [(none)]> create user ticdc@'%' identified by 'pingcap';
MySQL [(none)]> GRANT ALL PRIVILEGES ON *.* TO 'ticdc'@'%' ;
MySQL [(none)]> create database pingcap;
Query OK, 0 rows affected (0.65 sec)

4.3 创建cdc同步任务

使用ticdc用户同步 pingcap 数据库下数据。

首先,在CDC的上游创建toml文件,用于创建changefeed任务

[tidb@tidb01 ~]$ cat changefeed.toml
# 指定配置文件中涉及的库名、表名是否为大小写敏感,该配置会同时影响 filter 和 sink 相关配置,默认为 true
case-sensitive = true

# 是否输出 old value,从 v4.0.5 开始支持,从 v5.0 开始默认为 true
enable-old-value = true
force-replicate = true

[mounter]
# mounter 解码 KV 数据的线程数,默认值为 16
# worker-num = 16

# 生产库,排除 mhxy*
[filter]
rules = ["pingcap.*"]

创建changefeed任务

[tidb@tidb01 ~]$ tiup cdc cli changefeed create --sink-uri="mysql://ticdc:pingcap@192.168.2.77:4000/" --config=changefeed.toml
tiup is checking updates for component cdc ...
Starting component `cdc`: /home/tidb/.tiup/components/cdc/v7.1.1/cdc cli changefeed create --sink-uri=mysql://ticdc:pingcap@192.168.2.77:4000/ --config=changefeed.toml
Create changefeed successfully!
ID: 2cd5a986-90fa-4bc9-9e9c-1dd268d5077a
Info: {"upstream_id":7542538698203629074,"namespace":"default","id":"2cd5a986-90fa-4bc9-9e9c-1dd268d5077a","sink_uri":"mysql://ticdc:xxxxx@192.168.2.77:4000/","create_time":"2025-09-27T20:51:23.76894628+08:00","start_ts":461105393466867718,"config":{"memory_quota":1073741824,"case_sensitive":true,"enable_old_value":true,"force_replicate":true,"ignore_ineligible_table":false,"check_gc_safe_point":true,"enable_sync_point":false,"bdr_mode":false,"sync_point_interval":600000000000,"sync_point_retention":86400000000000,"filter":{"rules":["pingcap.*"],"event_filters":null},"mounter":{"worker_num":16},"sink":{"protocol":"","schema_registry":"","csv":{"delimiter":",","quote":"\"","null":"\\N","include_commit_ts":false,"binary_encoding_method":"base64"},"column_selectors":null,"transaction_atomicity":"","encoder_concurrency":16,"terminator":"\r\n","date_separator":"day","enable_partition_separator":true,"file_index_digit":0,"enable_kafka_sink_v2":false,"only_output_updated_columns":null},"consistent":{"level":"none","max_log_size":64,"flush_interval":2000,"storage":"","use_file_backend":false},"scheduler":{"enable_table_across_nodes":false,"region_threshold":100000,"write_key_threshold":0},"integrity":{"integrity_check_level":"none","corruption_handle_level":"warn"}},"state":"normal","creator_version":"v7.1.1","resolved_ts":461105393466867718,"checkpoint_ts":461105393466867718,"checkpoint_time":"2025-09-27 20:51:23.623"}
[tidb@tidb01 ~]$
[tidb@tidb01 ~]$ tiup cdc cli  changefeed list --server 192.168.2.71:8300
tiup is checking updates for component cdc ...
Starting component `cdc`: /home/tidb/.tiup/components/cdc/v7.1.1/cdc cli changefeed list --server 192.168.2.71:8300
[
  {
    "id": "2cd5a986-90fa-4bc9-9e9c-1dd268d5077a",
    "namespace": "default",
    "summary": {
      "state": "normal",
      "tso": 461105432657395713,
      "checkpoint": "2025-09-27 20:53:53.123",
      "error": null
    }
  }
]
[tidb@tidb01 ~]$
[tidb@tidb01 ~]$
[tidb@tidb01 ~]$ tiup cdc cli  capture  list --server 192.168.2.71:8300
tiup is checking updates for component cdc ...
Starting component `cdc`: /home/tidb/.tiup/components/cdc/v7.1.1/cdc cli capture list --server 192.168.2.71:8300
[
  {
    "id": "26b269d6-eedf-4408-b110-ac6a759b864d",
    "is-owner": true,
    "address": "192.168.2.72:8300",
    "cluster-id": "default"
  },
  {
    "id": "a15e02dd-c6e7-48cc-93d0-a78dc4aabe4a",
    "is-owner": false,
    "address": "192.168.2.73:8300",
    "cluster-id": "default"
  },
  {
    "id": "5fcc40a5-fd98-48ce-9bfb-49ec1ec97db6",
    "is-owner": false,
    "address": "192.168.2.71:8300",
    "cluster-id": "default"
  }
]

5. 使用bench测试

5.1 TPC-C测试

在上游数据库进程TPC-C简单测试,同步数据到tem的敏捷模式下。TPC-C 的prepare 阶段,上游集群持续大概25分钟完成,cdc完全同步到下游持续。

[tidb@tidb01 ~]$ tiup bench tpcc prepare -H 192.168.2.71 -P 8000 -D pingcap  --user=root --password=root   --warehouses 4 --parts 4
tiup is checking updates for component bench ...
Starting component `bench`: /home/tidb/.tiup/components/bench/v1.12.0/tiup-bench tpcc prepare -H 192.168.2.71 -P 8000 -D pingcap --user=root --password=root --warehouses 4 --parts 4
creating table warehouse
creating table district
creating table customer
creating table history
creating table new_order
creating table orders
creating table order_line
creating table stock
creating table item
load to item
load to warehouse in warehouse 1
load to stock in warehouse 1
load to district in warehouse 1
load to warehouse in warehouse 2

...
begin to check warehouse 3 at condition 3.3.2.4
begin to check warehouse 3 at condition 3.3.2.7
begin to check warehouse 3 at condition 3.3.2.9
begin to check warehouse 3 at condition 3.3.2.11
begin to check warehouse 3 at condition 3.3.2.2
begin to check warehouse 3 at condition 3.3.2.3
begin to check warehouse 3 at condition 3.3.2.5
begin to check warehouse 3 at condition 3.3.2.6
begin to check warehouse 3 at condition 3.3.2.8
begin to check warehouse 3 at condition 3.3.2.10
begin to check warehouse 3 at condition 3.3.2.12
begin to check warehouse 4 at condition 3.3.2.5
begin to check warehouse 4 at condition 3.3.2.6
begin to check warehouse 4 at condition 3.3.2.8
begin to check warehouse 4 at condition 3.3.2.10
begin to check warehouse 4 at condition 3.3.2.12
begin to check warehouse 4 at condition 3.3.2.2
begin to check warehouse 4 at condition 3.3.2.3
begin to check warehouse 4 at condition 3.3.2.7
begin to check warehouse 4 at condition 3.3.2.9
begin to check warehouse 4 at condition 3.3.2.11
begin to check warehouse 4 at condition 3.3.2.1
begin to check warehouse 4 at condition 3.3.2.4
Finished
[tidb@tidb01 ~]$

###CDC上游, pingcap数据库生成较小的数据量
MySQL [(none)]> SELECT
    -> table_schema AS '数据库名',
    -> ROUND(SUM(data_length + index_length) / 1024 / 1024, 2) AS '数据库大小(MB)'
    -> FROM
    -> information_schema.tables
    -> GROUP BY
    -> table_schema
    -> ORDER BY
    -> SUM(data_length + index_length) DESC;
+--------------------+---------------------+
| 数据库名           | 数据库大小(MB)      |
+--------------------+---------------------+
| pingcap            |              383.96 |
| employees          |                0.00 |
| METRICS_SCHEMA     |                0.00 |
| mysql              |                0.00 |
| INFORMATION_SCHEMA |                0.00 |
| PERFORMANCE_SCHEMA |                0.00 |
+--------------------+---------------------+
6 rows in set (2.90 sec)

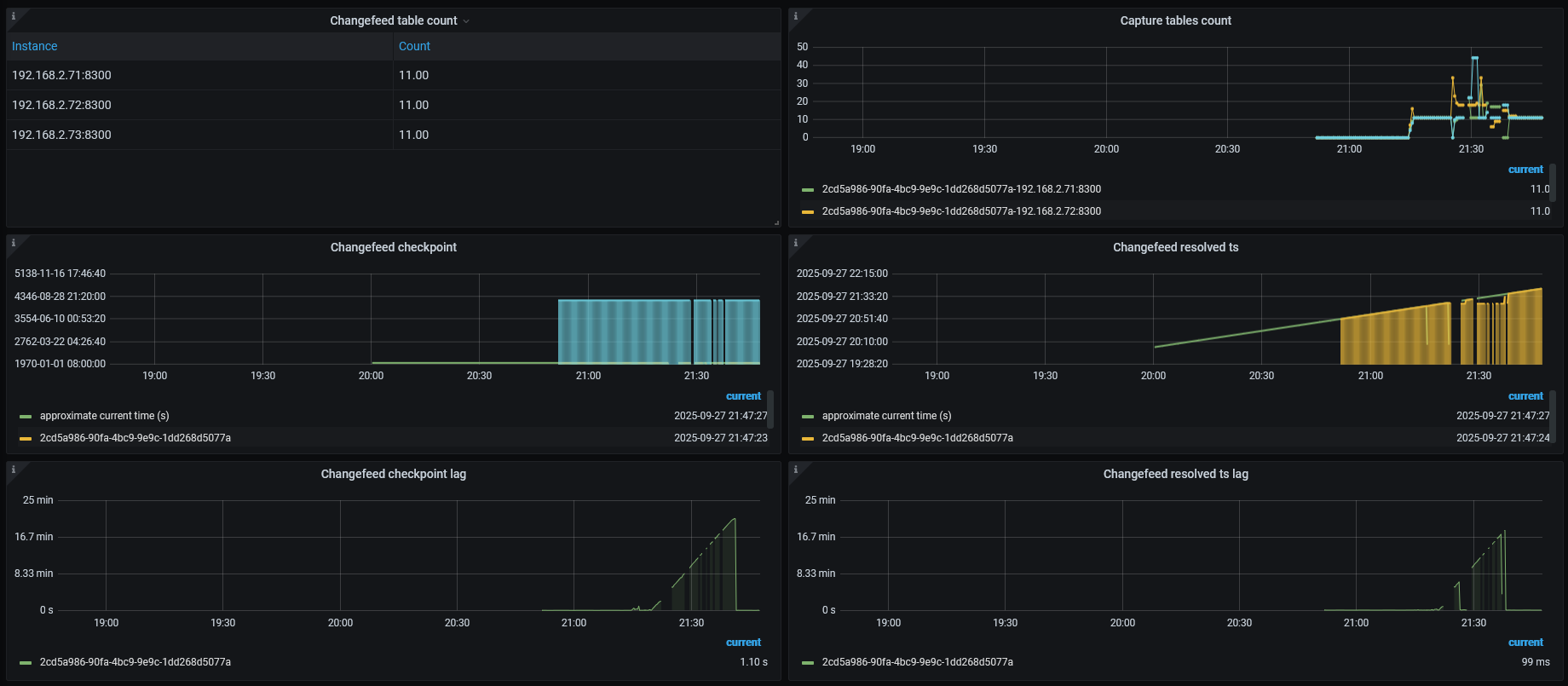

观察上游集群cdc在granfana的状态

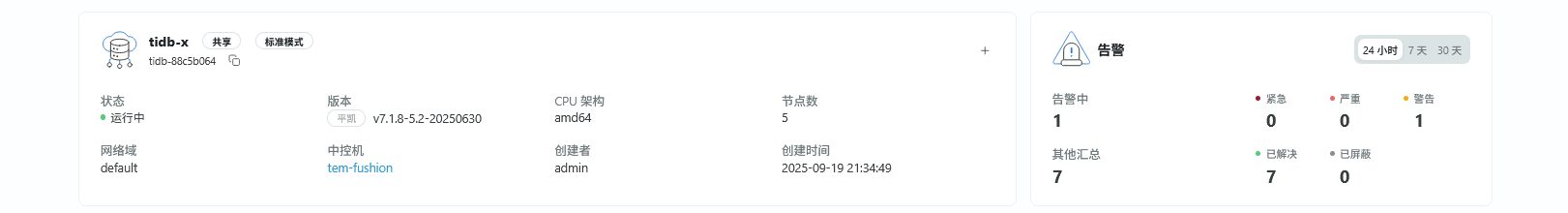

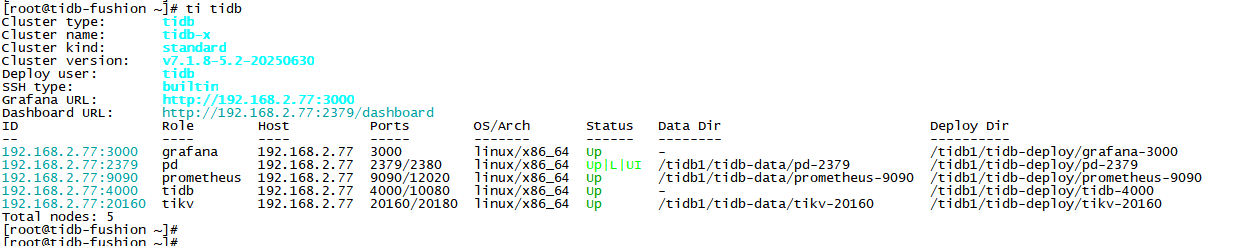

在tem中观察Tidb在敏捷模式下变化,在这里tidb-x 标识为标准模式。

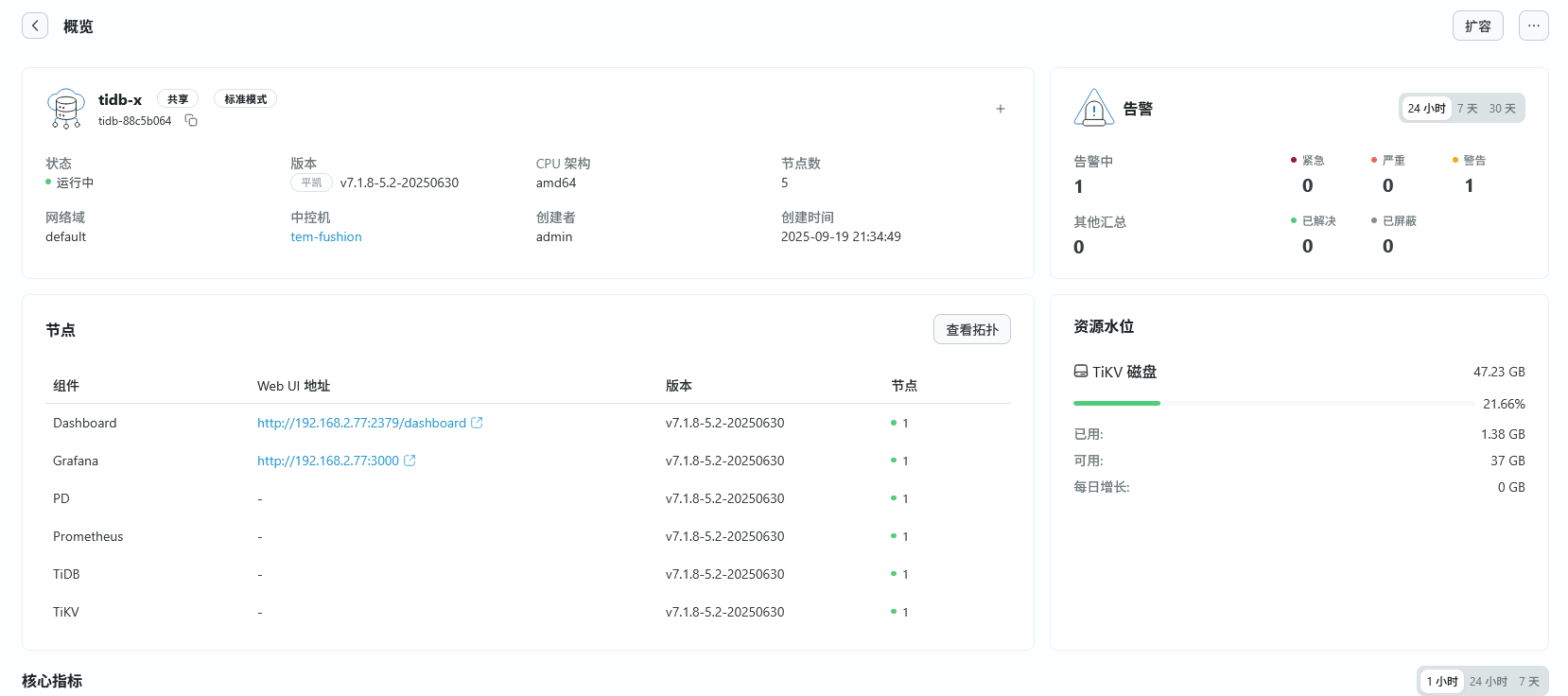

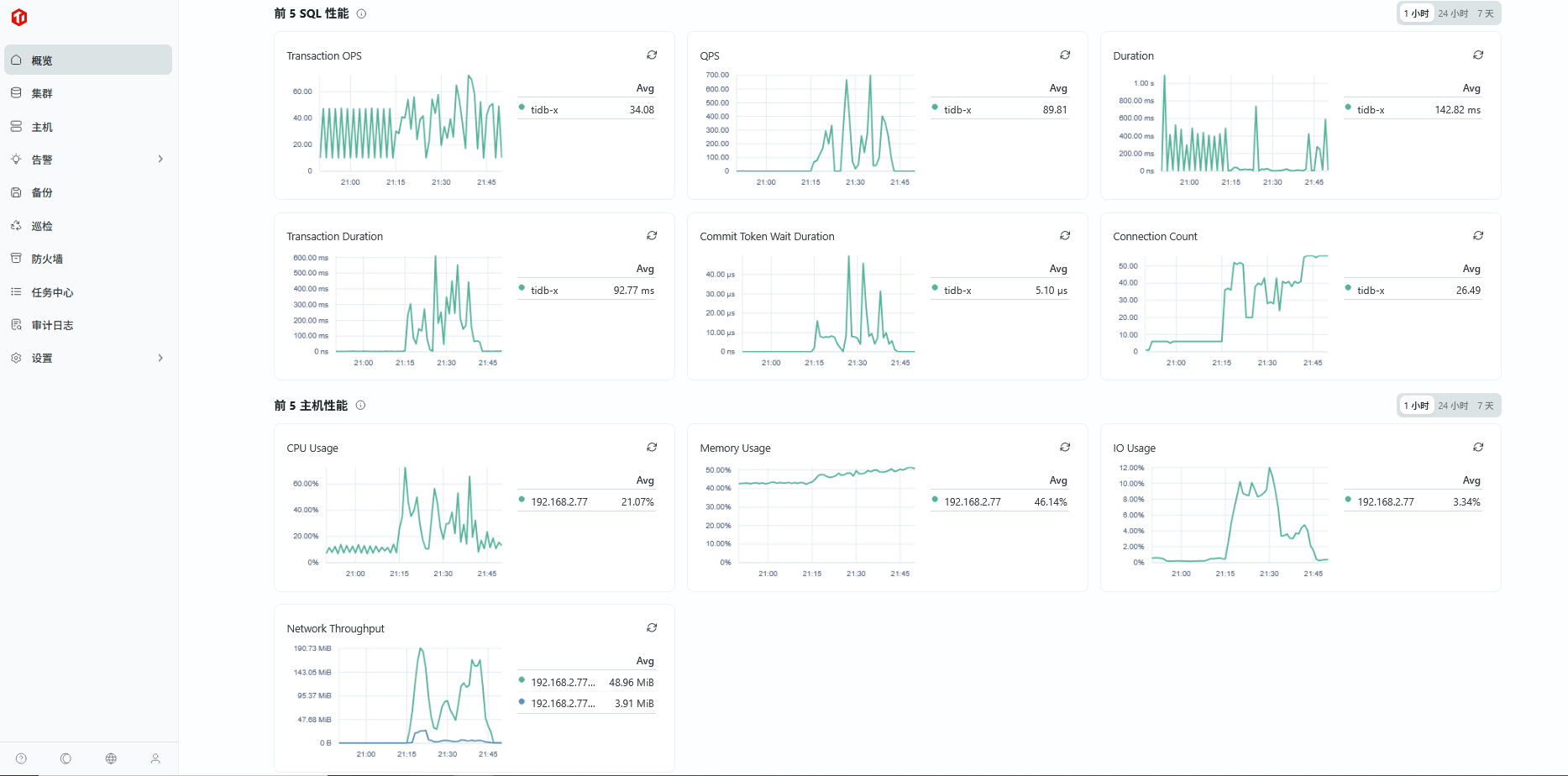

图一 ,TEM整体运行

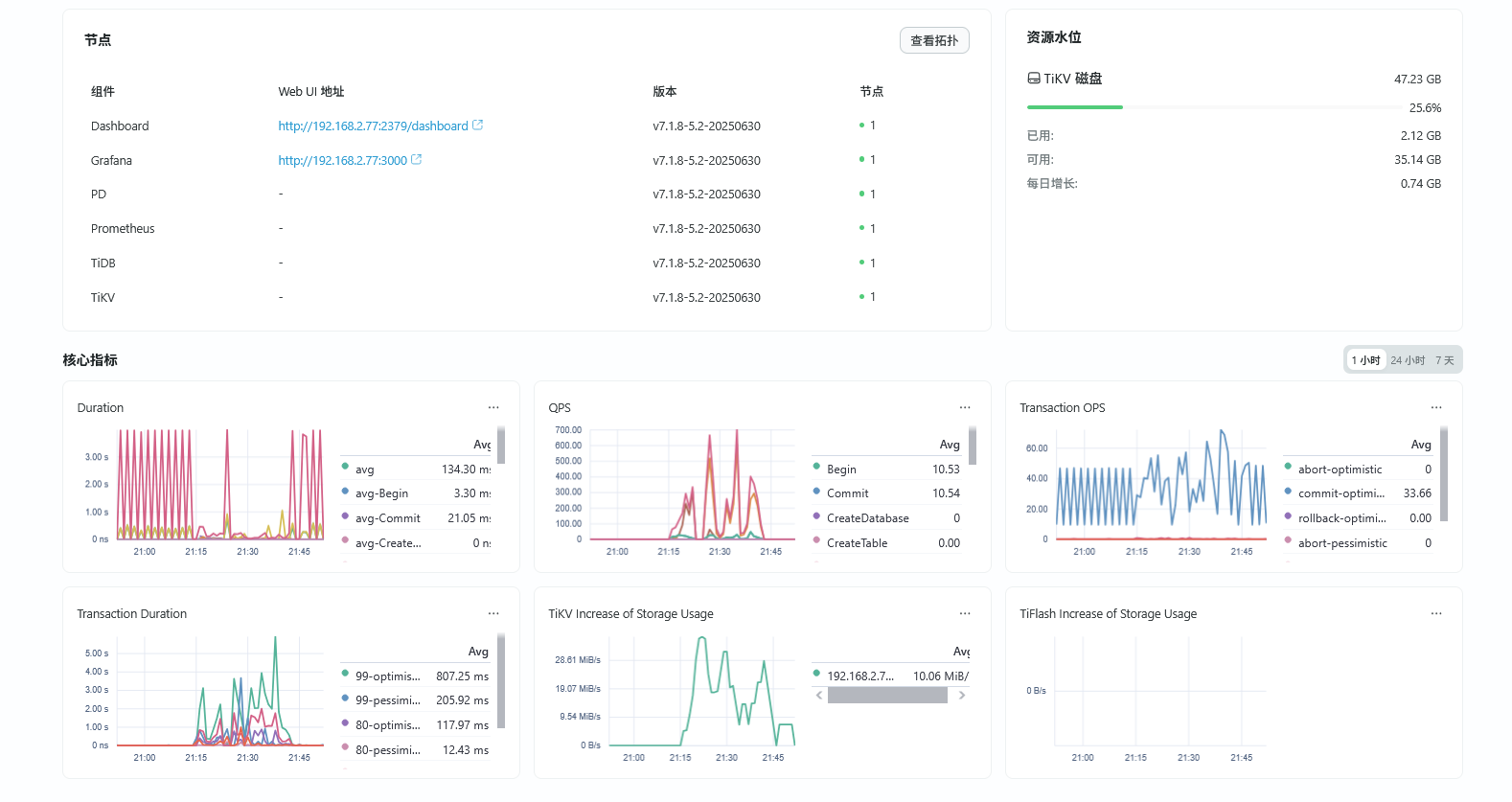

在TEM下,tidb-x 敏捷模式下运行情况



5.2 运行 TPC-C 测试

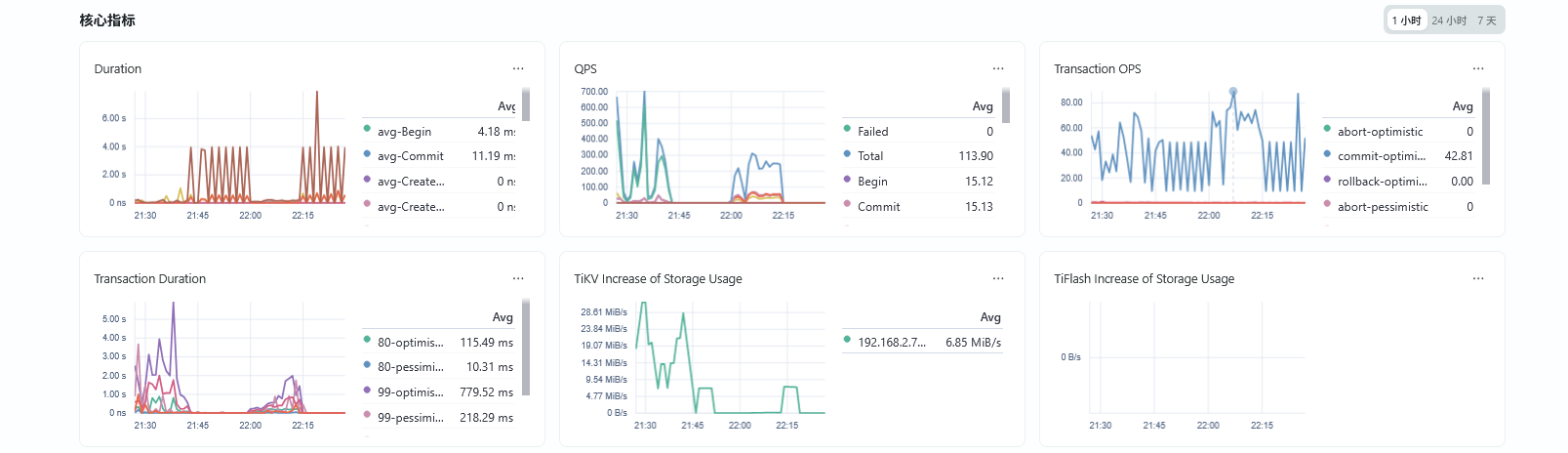

开启6个并发,run 10分钟的。 整体dml语句不多,下游敏捷模式下tidb 核心指标变化很小。


6.总结

  • 在Tem部署的敏捷模式tidb数据库是可以做容灾方案,
  • 展望Tidb的敏捷模式,应该是要适配更多业务场景,如数据库容器化;更多数据库功能,如接入AI特性等。
