一、前言
1.1 行业介绍
从事 IT 集成及架构设计 15 载，感受到最近几年国产信创环境的替代需求，转向进军国产数据库领域。打算在此领域深耕，进行新的职场挑战。
目前一直服务于金融行业，熟悉金融行业各业务系统的架构。深知现有城商银行面临的信创转型机遇：客户必将在监管机构的要求下，来完成信创数据库的改造替代，这个目标已临近。
1.2 目前遇到的数据库挑战
如何完成从现有 ORACLE、DB2 数据库向国产信创数据库的迁移改造，将是客户面临的最终挑战。但在此之前，完成信创数据库的选型，将是首要任务。
目前遇到的主要难题有以下几点： 1）信创数据库种类多，如何选型，谁成熟，谁稳定，谁服务跟的上？ 2）海量数据迁移问题 3）迁移后业务改造适配问题 4）并行双轨运行是否支持，回退是否安全可行 5）信创数据库性能问题、安全问题、稳定性问题
1.3 参加活动的原因
参加此次活动加深对TiDB数据库的理解，为客户的数据库选型提供解决方案。
1.4 敏捷模式的体验总结
敏捷模式通过TEM工具极大地简化了数据库的部署和运维复杂度。官方文档清晰易懂，使部署变得简单易用。
1.5 敏捷模式是否能应对该挑战
部署简单，管理易用，稳定性还需要时间及复杂业务场景验证。
二、TEM快速部署安装
2.1 环境介绍
| 主机名 | CPU | MEM | 系统版本 | TEM 版本 | 备注 |
|---|---|---|---|---|---|
| tidb01 | 16 C | 32 G | RHEL 7.6 | 3.1.0 | 192.168.2.126 |
2.2 部署 TEM
1、解压安装包
# ls -1
amd64.zip
tem-amd64.tar
# tar xvf tem-amd64.tar
# cd tem-package-v3.1.0-linux-amd64/
mkdir -pv /tem/{run,data}
2、配置文件修改
修改config.yaml文件：
global:
user: "tidb"
group: "tidb"
ssh_port: 22
deploy_dir: "/tem/run"
data_dir: "/tem/data"
arch: "amd64"
log_level: "info"
enable_tls: false # 是否开启TLS验证，开启后如果不配置证书密钥，则会生成自签证书和密钥
server_configs: # 这⾥指定 tem 节点的全局配置
tem_servers:
# 填写 metadb 配置的套接字，若配置了多个元数据库的地址，应以逗号分隔且确保⽆空格
db_addresses: "127.0.0.1:4000"
db_u: "root" # 若由 tem 辅助创建的元数据库，请使⽤ root ⽤户
db_pwd: "" # 若由 tem 辅助创建的元数据库，请使⽤空密码
db_name: "test" # 若由 tem 辅助创建的元数据库，请使⽤ test 数据库
log_filename: "/tem/run/tem-server-8080/log/tem.log"
log_tem_level: "info"
log_max_size: 300
log_max_days: 0
log_max_backups: 0
external_tls_cert: "" # tem 对外使用的tls证书
external_tls_key: "" # tem 对外使用的tls密钥
internal_tls_ca_cert: "" # tem 内部节点间双向验证使用的tls证书
internal_tls_cert: "" # tem 内部节点间双向验证使用的tls证书
internal_tls_key: "" # tem 内部节点间双向验证使用的tls证书
tem_servers:
- host: "0.0.0.0" # 请填写 tem 节点的实际地址
port: 8080
mirror_repo: true # 是否开启镜像仓库，多个TEM节点时，有且仅有一个节点开启
3、安装部署
直接执行 sh install. sh 安装脚本：
# sh install.sh
#### Please make sure that you have edited user ####
#### in config.yaml as you want, and don't #
#### The user is 'tidb' by default, which will be ###
#### used as the owner to deploy TEM service. ####
#### If you have installed TEM before, make sure ####
#### that the user is consistent with the old one. #
#### After install.sh is run, a config.yaml file ####
#### will be generated under /home/<user>/, and ####
#### please don't edit this file. ####
Do you want to continue? [y/N] y
start installing
Check linux amd64
##### install version v3.1.0 #####
##### metadb_topology.yaml exists, will install metadb #####
##### add user tidb started #####
useradd: user 'tidb' already exists
Last login: Sat Oct 11 15:08:32 CST 2025
Generating public/private rsa key pair.
/home/tidb/.ssh/id_rsa already exists.
Overwrite (y/n)? ##### ssh-keygen ~/.ssh/id_rsa #####
##### cat ~/.ssh/authorized_keys #####
##### user chmod .ssh finished #####
##### add user tidb finished #####
##### add PrivateKey /home/tidb/.ssh/id_rsa #####
##### add PublicKey /home/tidb/.ssh/id_rsa.pub #####
##### check depends tar started #####
Last login: Sat Oct 11 15:22:29 CST 2025
Dependency check check_ssh-copy-id proceeding.
Dependency check check_ssh-copy-id end.
Dependency check check_scp proceeding.
Dependency check check_scp end.
Dependency check check_ssh proceeding.
Dependency check check_ssh end.
##### check depends tar finished #####
##### check env started: before possible metadb installation #####
assistant check {"level":"debug","msg":"ssh"}
strategyName Check
NetWorkStatus Start: 1760167349
NetWorkStatus End : 1760167352
Net Status , OK
SSHCheck 0.0.0.0 authorized_keys
id_rsa
id_rsa.pub
success
TEM assistant check {"level":"debug","msg":"ssh"} strategyName Check NetWorkStatus Start: 1760167349 NetWorkStatus End : 1760167352 Net Status , OK SSHCheck 0.0.0.0 authorized_keys id_rsa id_rsa.pub success
##### check env finished: before possible metadb installation #####
##### deploy_tiup started #####
##### prepare TiDB AND TEM TIUP_HOME started #####
##### mkdir /tem/run/.tiup finished #####
##### mkdir /tem/run/.tem finished #####
##### mkdir /tem/run/.tiup/bin finished #####
##### mkdir /tem/run/.tem/bin finished #####
##### mkdir /tem/data/tidb-repo finished #####
##### mkdir /tem/data/tem-repo finished #####
##### mkdir /tem/run/monitor finished #####
##### mkdir /home/tidb/.temmeta finished #####
##### mkdir /home/tidb/.temmeta/bin finished #####
##### mkdir /home/tidb/tidb-repo finished #####
##### prepare TiDB AND TEM TIUP_HOME finished #####
##### deploy_binary started #####
##### mkdir /tem/run/tem-package finished #####
##### mkdir /tem/run/tem-package/tem-toolkit-v3.1.0-linux-amd64 finished #####
##### mkdir /tem/run/tem-package/tidb-toolkit-v3.1.0-linux-amd64 finished #####
##### deploy_binary finished #####
##### install tiup binary to /tem/run/.tiup/bin /tem/run/.tem/bin started #####
##### install tiup binary to /tem/run/.tiup/bin /tem/run/.tem/bin finished #####
##### install TiUP to /usr/local/bin started #####
##### install TiUP to /usr/local/bin finished #####
##### init tem mirror /tem/data/tem-repo started #####
##### build_mirror started #####
##### build_mirror repo_dir /tem/data/tem-repo #####
##### build_mirror home_dir /tem/run/.tem #####
##### build_mirror tiup_bin /usr/local/bin/tiup #####
##### build_mirror toolkit_dir /tem/run/tem-package/tem-toolkit-v3.1.0-linux-amd64 #####
##### build_mirror deploy_user tidb #####
Last login: Sat Oct 11 15:22:29 CST 2025
./
./local_install.sh
./tem-v3.1.0-linux-amd64.tar.gz
./node-exporter-v1.2.2-linux-amd64.tar.gz
./1.prometheus.json
./1.alertmanager.json
./grafana-v7.5.15-linux-amd64.tar.gz
./1.grafana.json
./keys/
./keys/b7a47c72bf7ff51f-root.json
./keys/8d862a21510f57fe-timestamp.json
./keys/92686f28f94bcc9c-snapshot.json
./keys/cd6238bf63753458-root.json
./keys/d9da78461bae5fb8-root.json
./keys/87cc8597ba186ab8-pingcap.json
./keys/c181aeb3996f7bfe-index.json
./root.json
./1.tiup.json
./1.tem-server.json
./1.index.json
./1.root.json
./alertmanager-v0.23.0-linux-amd64.tar.gz
./prometheus-v2.29.2-linux-amd64.tar.gz
./tiup-v1.14.0-linux-amd64.tar.gz
./tem-server-v3.1.0-linux-amd64.tar.gz
./tiup-linux-amd64.tar.gz
./snapshot.json
./1.tem.json
./timestamp.json
./1.node-exporter.json
Successfully set mirror to /tem/data/tem-repo
##### init tem mirror /tem/data/tem-repo finished #####
##### init tidb mirror /tem/data/tidb-repo started #####
##### build_mirror started #####
##### build_mirror repo_dir /tem/data/tidb-repo #####
##### build_mirror home_dir /tem/run/.tiup #####
##### build_mirror tiup_bin /usr/local/bin/tiup #####
##### build_mirror toolkit_dir /tem/run/tem-package/tidb-toolkit-v3.1.0-linux-amd64 #####
##### build_mirror deploy_user tidb #####
Last login: Sat Oct 11 15:22:34 CST 2025
./
./local_install.sh
./prometheuse-v6.5.0-linux-amd64.tar.gz
./1.br-ee.json
./alertmanager-v0.17.0-linux-amd64.tar.gz
./1.alertmanager.json
./br-v7.1.5-linux-amd64.tar.gz
./1.cluster.json
./br-v8.1.0-linux-amd64.tar.gz
./1.tikv.json
./br-v6.1.7-linux-amd64.tar.gz
./keys/
./keys/bd73fb49a9fe4c1f-root.json
./keys/ccb014427c930f35-root.json
./keys/0ef7038b19901f8d-root.json
./keys/e80212bba0a0c5d7-timestamp.json
./keys/cdc237d3f9580e59-index.json
./keys/704b6a90d209834a-pingcap.json
./keys/37ae6a6f7c3ae619-root.json
./keys/42859495dc518ea9-snapshot.json
./keys/6f1519e475e9ae65-root.json
./keys/bfc5831da481f289-index.json
./keys/4fa53899faebf9d9-root.json
./keys/928bfc0ffaa29a53-timestamp.json
./keys/7b99f462f7931ade-snapshot.json
./keys/24f464d5e96770ca-pingcap.json
./1.prometheuse.json
./br-v6.5.10-linux-amd64.tar.gz
./root.json
./1.tidb.json
./1.tiup.json
./1.pd.json
./1.index.json
./1.root.json
./tikv-v6.5.0-linux-amd64.tar.gz
./pd-v6.5.0-linux-amd64.tar.gz
./cluster-v1.14.0-linux-amd64.tar.gz
./blackbox_exporter-v0.21.1-linux-amd64.tar.gz
./5.br.json
./br-v7.5.2-linux-amd64.tar.gz
./tiup-v1.14.0-linux-amd64.tar.gz
./1.node_exporter.json
./1.insight.json
./tiup-linux-amd64.tar.gz
./insight-v0.4.2-linux-amd64.tar.gz
./br-ee-v7.1.1-3-linux-amd64.tar.gz
./snapshot.json
./node_exporter-v1.3.1-linux-amd64.tar.gz
./tidb-v6.5.0-linux-amd64.tar.gz
./1.blackbox_exporter.json
./timestamp.json
Successfully set mirror to /tem/data/tidb-repo
##### init tidb mirror /tem/data/tidb-repo finished #####
##### init temmeta mirror /home/tidb/tidb-repo started #####
##### build_mirror started #####
##### build_mirror repo_dir /home/tidb/tidb-repo #####
##### build_mirror home_dir /home/tidb/.temmeta #####
##### build_mirror tiup_bin /usr/local/bin/tiup #####
##### build_mirror toolkit_dir /tem/run/tem-package/tidb-toolkit-v3.1.0-linux-amd64 #####
##### build_mirror deploy_user tidb #####
Last login: Sat Oct 11 15:22:37 CST 2025
./
./local_install.sh
./prometheuse-v6.5.0-linux-amd64.tar.gz
./1.br-ee.json
./alertmanager-v0.17.0-linux-amd64.tar.gz
./1.alertmanager.json
./br-v7.1.5-linux-amd64.tar.gz
./1.cluster.json
./br-v8.1.0-linux-amd64.tar.gz
./1.tikv.json
./br-v6.1.7-linux-amd64.tar.gz
./keys/
./keys/bd73fb49a9fe4c1f-root.json
./keys/ccb014427c930f35-root.json
./keys/0ef7038b19901f8d-root.json
./keys/e80212bba0a0c5d7-timestamp.json
./keys/cdc237d3f9580e59-index.json
./keys/704b6a90d209834a-pingcap.json
./keys/37ae6a6f7c3ae619-root.json
./keys/42859495dc518ea9-snapshot.json
./keys/6f1519e475e9ae65-root.json
./keys/bfc5831da481f289-index.json
./keys/4fa53899faebf9d9-root.json
./keys/928bfc0ffaa29a53-timestamp.json
./keys/7b99f462f7931ade-snapshot.json
./keys/24f464d5e96770ca-pingcap.json
./1.prometheuse.json
./br-v6.5.10-linux-amd64.tar.gz
./root.json
./1.tidb.json
./1.tiup.json
./1.pd.json
./1.index.json
./1.root.json
./tikv-v6.5.0-linux-amd64.tar.gz
./pd-v6.5.0-linux-amd64.tar.gz
./cluster-v1.14.0-linux-amd64.tar.gz
./blackbox_exporter-v0.21.1-linux-amd64.tar.gz
./5.br.json
./br-v7.5.2-linux-amd64.tar.gz
./tiup-v1.14.0-linux-amd64.tar.gz
./1.node_exporter.json
./1.insight.json
./tiup-linux-amd64.tar.gz
./insight-v0.4.2-linux-amd64.tar.gz
./br-ee-v7.1.1-3-linux-amd64.tar.gz
./snapshot.json
./node_exporter-v1.3.1-linux-amd64.tar.gz
./tidb-v6.5.0-linux-amd64.tar.gz
./1.blackbox_exporter.json
./timestamp.json
Successfully set mirror to /home/tidb/tidb-repo
##### init temmeta mirror /home/tidb/tidb-repo finished #####
##### deploy_tiup /tem/run/.tem finished #####
##### install metadb started #####
Last login: Sat Oct 11 15:22:48 CST 2025
The component `prometheus` not found (may be deleted from repository); skipped
tiup is checking updates for component cluster ...
A new version of cluster is available:
The latest version: v1.14.0
Local installed version:
Update current component: tiup update cluster
Update all components: tiup update --all
The component `cluster` version is not installed; downloading from repository.
Starting component `cluster`: /home/tidb/.temmeta/components/cluster/v1.14.0/tiup-cluster deploy tem_metadb v6.5.0 metadb_topology.yaml -u tidb -i /home/tidb/.ssh/id_rsa --yes
+ Detect CPU Arch Name
- Detecting node 127.0.0.1 Arch info ... Done
+ Detect CPU OS Name
- Detecting node 127.0.0.1 OS info ... Done
+ Generate SSH keys ... Done
+ Download TiDB components
- Download pd:v6.5.0 (linux/amd64) ... Done
- Download tikv:v6.5.0 (linux/amd64) ... Done
- Download tidb:v6.5.0 (linux/amd64) ... Done
- Download node_exporter: (linux/amd64) ... Done
- Download blackbox_exporter: (linux/amd64) ... Done
+ Initialize target host environments
- Prepare 127.0.0.1:22 ... Done
+ Deploy TiDB instance
- Copy pd -> 127.0.0.1 ... Done
- Copy tikv -> 127.0.0.1 ... Done
- Copy tidb -> 127.0.0.1 ... Done
- Deploy node_exporter -> 127.0.0.1 ... Done
- Deploy blackbox_exporter -> 127.0.0.1 ... Done
+ Copy certificate to remote host
+ Init instance configs
- Generate config pd -> 127.0.0.1:2379 ... Done
- Generate config tikv -> 127.0.0.1:20160 ... Done
- Generate config tidb -> 127.0.0.1:4000 ... Done
+ Init monitor configs
- Generate config node_exporter -> 127.0.0.1 ... Done
- Generate config blackbox_exporter -> 127.0.0.1 ... Done
Enabling component pd
Enabling instance 127.0.0.1:2379
Enable instance 127.0.0.1:2379 success
Enabling component tikv
Enabling instance 127.0.0.1:20160
Enable instance 127.0.0.1:20160 success
Enabling component tidb
Enabling instance 127.0.0.1:4000
Enable instance 127.0.0.1:4000 success
Enabling component node_exporter
Enabling instance 127.0.0.1
Enable 127.0.0.1 success
Enabling component blackbox_exporter
Enabling instance 127.0.0.1
Enable 127.0.0.1 success
Cluster `tem_metadb` deployed successfully, you can start it with command: `tiup cluster start tem_metadb --init`
tiup is checking updates for component cluster ...
Starting component `cluster`: /home/tidb/.temmeta/components/cluster/v1.14.0/tiup-cluster start tem_metadb
Starting cluster tem_metadb...
+ [ Serial ] - SSHKeySet: privateKey=/home/tidb/.temmeta/storage/cluster/clusters/tem_metadb/ssh/id_rsa, publicKey=/home/tidb/.temmeta/storage/cluster/clusters/tem_metadb/ssh/id_rsa.pub
+ [Parallel] - UserSSH: user=tidb, host=127.0.0.1
+ [Parallel] - UserSSH: user=tidb, host=127.0.0.1
+ [Parallel] - UserSSH: user=tidb, host=127.0.0.1
+ [ Serial ] - StartCluster
Starting component pd
Starting instance 127.0.0.1:2379
Start instance 127.0.0.1:2379 success
Starting component tikv
Starting instance 127.0.0.1:20160
Start instance 127.0.0.1:20160 success
Starting component tidb
Starting instance 127.0.0.1:4000
Start instance 127.0.0.1:4000 success
Starting component node_exporter
Starting instance 127.0.0.1
Start 127.0.0.1 success
Starting component blackbox_exporter
Starting instance 127.0.0.1
Start 127.0.0.1 success
+ [ Serial ] - UpdateTopology: cluster=tem_metadb
Started cluster `tem_metadb` successfully
##### install metadb finished #####
##### check env started: after metadb installation #####
assistant check {"level":"debug","msg":"ssh"}
strategyName Check
success for 127.0.0.1:4000
success
NetWorkStatus Start: 1760167432
NetWorkStatus End : 1760167435
Net Status , OK
SSHCheck 0.0.0.0 authorized_keys
id_rsa
id_rsa.pub
success
TEM assistant check {"level":"debug","msg":"ssh"} strategyName Check success for 127.0.0.1:4000 success NetWorkStatus Start: 1760167432 NetWorkStatus End : 1760167435 Net Status , OK SSHCheck 0.0.0.0 authorized_keys id_rsa id_rsa.pub success
##### check env finished: after metadb installation #####
##### generate config /home/tidb/config.yaml started #####
assistant run {"level":"debug","msg":"ssh"}
strategyName Install
success for 127.0.0.1:4000
success
success
TEM assistant run {"level":"debug","msg":"ssh"} strategyName Install success for 127.0.0.1:4000 success success
##### assistant run /home/tidb/config.yaml {"level":"debug","msg":"ssh"}
strategyName Install
success for 127.0.0.1:4000
success
success finished #####
Detected shell: bash
Shell profile: /home/tidb/.bash_profile
Last login: Sat Oct 11 15:23:25 CST 2025
tiup is checking updates for component tem ...
Starting component `tem`: /tem/run/.tem/components/tem/v3.1.0/tiup-tem tls-gen tem-servers
TLS certificate for cluster tem-servers generated
tiup is checking updates for component tem ...
Starting component `tem`: /tem/run/.tem/components/tem/v3.1.0/tiup-tem deploy tem-servers v3.1.0 /home/tidb/config.yaml -u tidb -i /home/tidb/.ssh/id_rsa --yes
+ Generate SSH keys ... Done
+ Download components
- Download tem-server:v3.1.0 (linux/amd64) ... Done
+ Initialize target host environments
- Prepare 0.0.0.0:22 ... Done
+ Copy files
- Copy tem-server -> 0.0.0.0 ... Done
Enabling component tem-server
Enabling instance 0.0.0.0:8080
Enable instance 0.0.0.0:8080 success
Cluster `tem-servers` deployed successfully, you can start it with command: `TIUP_HOME=/home/<user>/.tem tiup tem start tem-servers`, where user is defined in config.yaml. by default: `TIUP_HOME=/home/tidb/.tem tiup tem start tem-servers`
tiup is checking updates for component tem ...
Starting component `tem`: /tem/run/.tem/components/tem/v3.1.0/tiup-tem start tem-servers
Starting cluster tem-servers...
+ [ Serial ] - SSHKeySet: privateKey=/tem/run/.tem/storage/tem/clusters/tem-servers/ssh/id_rsa, publicKey=/tem/run/.tem/storage/tem/clusters/tem-servers/ssh/id_rsa.pub
+ [Parallel] - UserSSH: user=tidb, host=0.0.0.0
+ [ Serial ] - StartCluster
Starting cluster ComponentName tem-server...
Starting component tem-server
Starting instance 0.0.0.0:8080
Start instance 0.0.0.0:8080 success
Started tem `tem-servers` successfully
tiup is checking updates for component tem ...
Starting component `tem`: /tem/run/.tem/components/tem/v3.1.0/tiup-tem display tem-servers
Cluster type: tem
Cluster name: tem-servers
Cluster version: v3.1.0
Deploy user: tidb
SSH type: builtin
WebServer URL:
ID Role Host Ports OS/Arch Status Data Dir Deploy Dir
-- ---- ---- ----- ------- ------ -------- ----------
0.0.0.0:8080 tem-server 0.0.0.0 8080 linux/x86_64 Up /tem/data/tem-server-8080 /tem/run/tem-server-8080
Total nodes: 1
/home/tidb/.bash_profile has been modified to to add tiup to PATH
open a new terminal or source /home/tidb/.bash_profile to use it
Installed path: /usr/local/bin/tiup
=====================================================================
TEM service has been deployed on host <ip addresses> successfully, please use below
command check the status of TEM service:
1. Switch user: su - tidb
2. source /home/tidb/.bash_profile
3. Have a try: TIUP_HOME=/tem/run/.tem tiup tem display tem-servers
====================================================================
4、安装后检查
4.1 命令行检查
TIUP_HOME=/tem/run/.tem tiup tem display tem-servers 检查服务状态。
su - tidb
$ TIUP_HOME=/tem/run/.tem tiup tem display tem-servers
tiup is checking updates for component tem ...
Starting component `tem`: /tem/run/.tem/components/tem/v3.1.0/tiup-tem display tem-servers
Cluster type: tem
Cluster name: tem-servers
Cluster version: v3.1.0
Deploy user: tidb
SSH type: builtin
WebServer URL:
ID Role Host Ports OS/Arch Status Data Dir Deploy Dir
-- ---- ---- ----- ------- ------ -------- ----------
0.0.0.0:8080 tem-server 0.0.0.0 8080 linux/x86_64 Up /tem/data/tem-server-8080 /tem/run/tem-server-8080
Total nodes: 1
4.2 登录WEB 界面检查
http://<TEM 部署ip地址>:<port>/login
http://192.168.2.126:8080
TEM 默认⽤户为 admin, 默认密码为 admin
至此，TEM 的部署已经完成，真是顺利，真是简单方便。为 TIDB 点个赞。
三、平凯数据库敏捷模式：安装体验
使用 TEM 快速部署平凯数据库敏捷模式。
参考：【内测】平凯数据库敏捷模式 beta 版-部署指南及体验方向 - 飞书云文档
3.1 配置凭证
- 点击“设置 -> 凭证 -> 主机 -> 添加凭证”
- 填写被控主机/中控机的 ssh 登录凭证，点击“确认”添加
- 检查凭证是否添加成功
3.2 向 TEM 导入敏捷模式安装包
下载 amd 64. zip 导入 TEM 中。
3.2.1 解压敏捷模式安装包
# unzip amd64.zip
# ls -1 | grep gz
tidb-ee-server-v7.1.8-5.2-20250630-linux-amd64.tar.gz # tidb服务整合包
tidb-ee-toolkit-v7.1.8-5.2-20250630-linux-amd64.tar.gz # 相关工具整合包
3.2.2 导入敏捷模式安装包到 TEM
- 点击“设置 -> 组件管理 -> 添加组件”
- 选择“组件镜像”
- 选择本地上传（上传刚下载的平凯数据库敏捷模式安装包）
3.3 配置中控机
- 点击“主机 -> 集群管理中控机 -> 添加中控机”
- 填写中控机信息
3.4 配置集群主机
- 点击“主机 -> 主机 -> 添加共享主机”
- 填写主机信息，点击“预览”，预览无误后点击“确认添加”
3.5 创建集群
- 点击“集群 -> 创建集群”
- 设定集群基础配置 集群名称：自定义 Root 用户密码：该集群的数据库 Root 用户密码，后续会在集群内的“ SQL 编辑器”和“数据闪回”功能中用到，记得保存 CPU 架构：选择部署机器的芯片架构 部署用户：用于启动部署的集群的用户，若该字段指定的用户在目标机器上不存在，则会尝试自动创建 集群种类：选择敏捷模式 部署模式：共享 主机规格：默认 4 C / 8 G
- 当添加完需要的组件后，点击“回到规划集群节点页面”按钮
注意： PingKaiDB Fusion：必须添加（节点配额限制为 10） Grafana：必须添加（才能使用监控功能） Prometheus 以及 Alertmanager：必须添加（才能使用告警功能） TiFlash：可选（如果需要测试平凯数据库敏捷模式的 HTAP 功能，需要添加） Pump 和 Drainer 组件：不建议添加
-
配置集群参数和告警 默认参数模版和告警模版即可，点击下一步
-
预览创建配置，确认无误后点击“创建”按钮启动创建任务
-
创建过程的具体日志可点击“查看详情”，或在“任务中心”中点击相应的任务进行查看
-
集群创建并纳管成功
3.6 调整下平凯数据库敏捷模式全局变量
完成平凯数据库敏捷模式部署后，在 TEM SQL 编辑器或使用 MySQL 客户端连接平凯数据库敏捷模式输入以下命令：
set global tidb_runtime_filter_mode=LOCAL;
set global tidb_opt_enable_mpp_shared_cte_execution=on;
set global tidb_rc_read_check_ts=on;
set global tidb_analyze_skip_column_types="json,blob,mediumblob,longblob,mediumtext,longtext";
set global tidb_enable_collect_execution_info=off;
set global tidb_enable_instance_plan_cache=on;
set global tidb_instance_plan_cache_max_size=2GiB;
set global tidbx_enable_tikv_local_call=on;
set global tidbx_enable_pd_local_call=on;
set global tidb_schema_cache_size=0;
-- 是否持久化到集群：否，仅作用于当前连接的 TiDB 实例
set global tidb_enable_slow_log=off;
至此，集群创建完毕
四、平凯数据库敏捷模式：基本功能体验
4.1 连接到tidb
通过 mysql 客户端连接
mysql --port 4000 --user xxx --password
4.2 添加用户
CREATE USER 'test'@'127.0.0.1' IDENTIFIED BY 'xxx';
4.3 授权
SHOW GRANTS FOR 'test'@'localhost';
4.4 删除用户
DROP USER 'test'@'localhost';
4.5 添加索引
alter table test add index idx_id (id);
4.6 删除索引
alter table test drop index idx_id;
五、平凯数据库敏捷模式：数据迁移体验
5.1 在中控机上安装 TiUP 组件
# curl --proto '=https' --tlsv1.2 -sSf https://tiup-mirrors.pingcap.com/install.sh | sh
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 4785k 100 4785k 0 0 5590k 0 --:--:-- --:--:-- --:--:-- 5597k
Successfully set mirror to https://tiup-mirrors.pingcap.com
Detected shell: bash
Shell profile: /root/.bash_profile
Installed path: /root/.tiup/bin/tiup
===============================================
Have a try: tiup playground
===============================================
# 生效环境变量
source ~/.bashrc
5.2 安装 TiUP DM 组件
# tiup install dm dmctl
download https://tiup-mirrors.pingcap.com/dm-v1.16.3-linux-amd64.tar.gz 9.03 MiB / 9.03 MiB 100.00% 44.48 MiB/s
download https://tiup-mirrors.pingcap.com/dmctl-v8.5.3-linux-amd64.tar.gz 75.63 MiB / 75.63 MiB 100.00% 14.75 MiB/s
5.3 创建数据源
首先，新建 source1.yaml 文件，写入以下内容：
# 唯一命名，不可重复。
source-id: "mysql-01"
# DM-worker 是否使用全局事务标识符 (GTID) 拉取 binlog。使用前提是上游 MySQL 已开启 GTID 模式。若上游存在主从自动切换，则必须使用 GTID 模式。
enable-gtid: true
from:
host: "${host}" # 例如：172.16.10.81
user: "root"
password: "${password}" # 支持但不推荐使用明文密码，建议使用 dmctl encrypt 对明文密码进行加密后使用
port: 3306
其次，在终端中执行下面的命令后，使用 tiup dmctl 将数据源配置加载到 DM 集群中:
tiup dmctl --master-addr ${advertise-addr} operate-source create source1.yaml
5.4 创建迁移任务
新建 task1.yaml 文件，写入以下内容：
# 任务名，多个同时运行的任务不能重名。
name: "test"
# 任务模式，可设为
# full：只进行全量数据迁移
# incremental： binlog 实时同步
# all： 全量 + binlog 迁移
task-mode: "all"
# 下游 TiDB 配置信息。
target-database:
host: "${host}" # 例如：172.16.10.83
port: 4000
user: "root"
password: "${password}" # 支持但不推荐使用明文密码，建议使用 dmctl encrypt 对明文密码进行加密后使用
# 当前数据迁移任务需要的全部上游 MySQL 实例配置。
mysql-instances:
-
# 上游实例或者复制组 ID。
source-id: "mysql-01"
# 需要迁移的库名或表名的黑白名单的配置项名称，用于引用全局的黑白名单配置，全局配置见下面的 `block-allow-list` 的配置。
block-allow-list: "listA"
# 黑白名单全局配置，各实例通过配置项名引用。
block-allow-list:
listA: # 名称
do-tables: # 需要迁移的上游表的白名单。
- db-name: "test_db" # 需要迁移的表的库名。
tbl-name: "test_table" # 需要迁移的表的名称。
5.5 启动任务
# 检查
tiup dmctl --master-addr ${advertise-addr} check-task task.yaml
# 启动
tiup dmctl --master-addr ${advertise-addr} start-task task.yaml
5.6 查看任务状态
tiup dmctl --master-addr ${advertise-addr} query-status ${task-name}
平凯数据库迁移工具，使数据迁移变的更加容易可控。极大的简化了DBA的工作。
六、TEM 易用性
TEM提供图形化的WEB管理界面，可以让用户在一个 Web 界面内即可完成：
1、TiDB 集群部署/纳管/升级
2、参数配置
3、节点扩缩容
4、综合监控、告警
5、自动化备份策略
6、故障自愈与性能诊断、任务定时执行、服务器/集群 CPU、内存、磁盘 I/O 等资源利用实时可视化
7、实现数据库统一资源池建设，彻底告别多集群、多组件来回切换及复杂命令行，让大规模、多集群场景下的运维更简单、更安全、更自动化

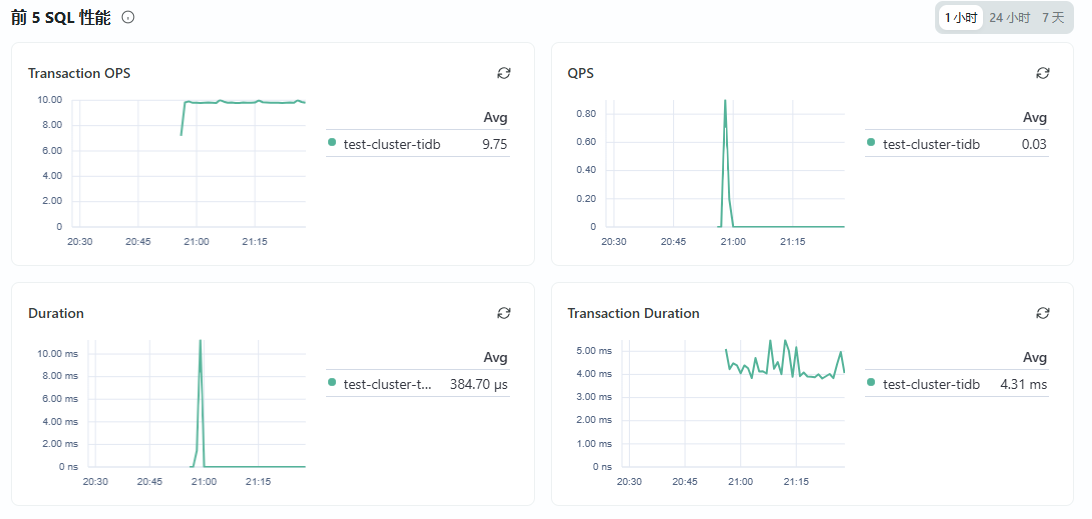

6.1 监控
可以监控：数据库时间、应用链接、SQL 负载、耗时分解、TiDB 组件资源、集群主机资源等。

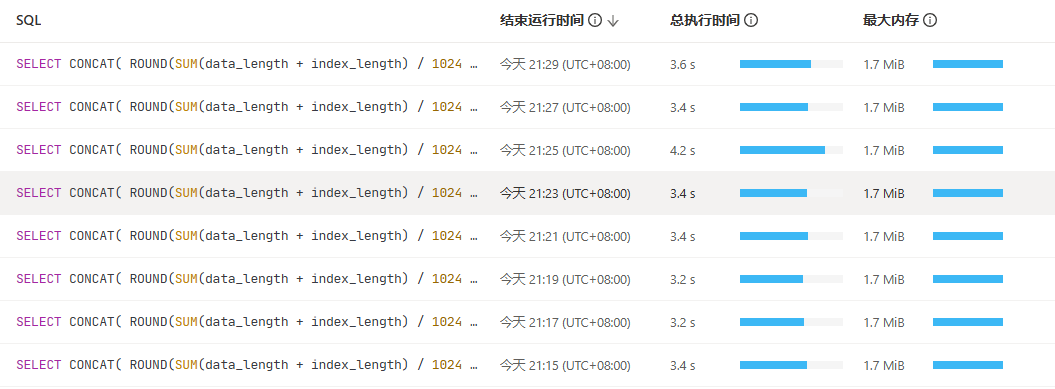

6.2 诊断
可以统计出慢 SQL、可以对 SQL 语句进行分析、审计。
6.3 告警
告警功能也是很完善的。 自己自定义创建告警规则和告警通道，以便监控。

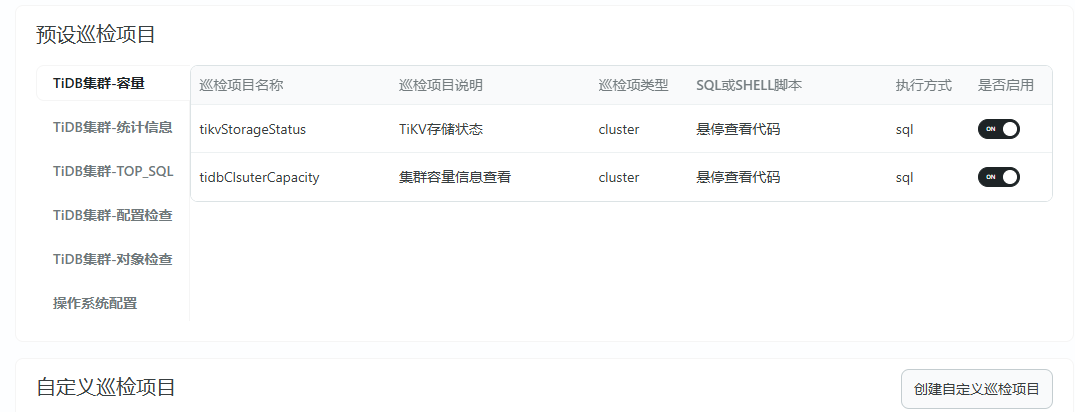

6.4 巡检
内置的巡检项目，也是比较完善的，可以执行日常巡检任务。
6.5 备份
可以实现对数据库、对表级的备份。 备份介质可以选择 S 3 对象存储及 NFS（NAS）备份。
恢复功能也完善，可以对整个集群实现恢复，也可以恢复到指点时间点，也可以指定库、指定表进行恢复。

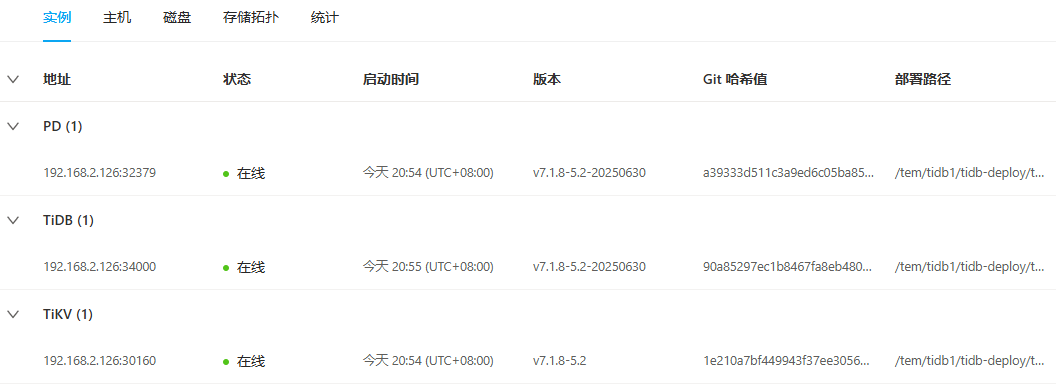

6.6 集群信息
可以查看集群的实例信息、主机资源、磁盘次元、存储拓扑等等。
总之，TEM 还有好多功能，大家可以尽情挖掘体验，解放 DBA 的运维之手。
同时，Dashboard也提供了很多图形化的管理功能（比如集群诊断、日志搜索分析、资源管控、高级调试等），非常之好用，大家可以试用体验一下。
